SEBO FELIX schematics and parts
Choose your Felix color, then select a blue reference number or part number to open its product page.

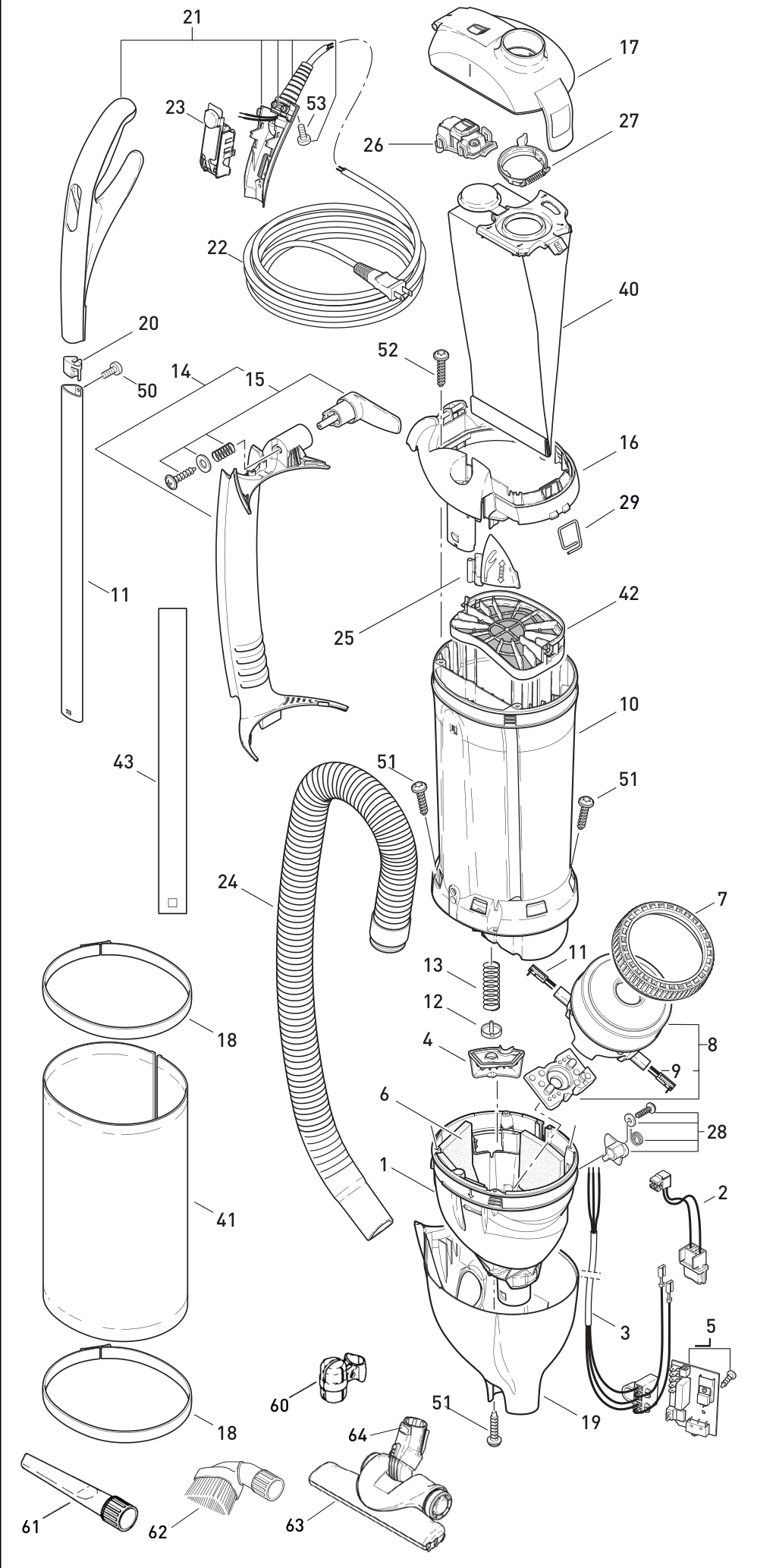

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO FELIX parts on this page (120)
- SEBO Air Duct for FELIX Premium and FELIX 2 Premium — Gray Black — SKU 7078GS
- SEBO Internal Wiring ET Harness for FELIX Premium, FELIX 2 Premium and DART — SKU 7064
- SEBO Internal Wiring HS, Complete, for FELIX Premium and FELIX 2 Premium — New Configuration — SKU 7071
- SEBO Valve Cover for FELIX Premium and FELIX 2 Premium — Gray Black — SKU 7056GS
- SEBO 120V Circuit Board with Variable Suction Control for FELIX Premium and FELIX 2 Premium — SKU 7111ER
- SEBO Motor Sound Insulation for FELIX and DART Uprights — SKU 7098
- SEBO Vacuum Motor Seal for FELIX, DART and 370 Series Uprights — SKU 1047
- SEBO 120V 1000W Vacuum Motor for FELIX Premium, FELIX 2 Premium and DART — SKU 7041ER
- SEBO Carbon Brush Set for the 7041ER Suction Motor — FELIX Premium, FELIX 2 Premium and DART — SKU 05140S
- SEBO Dust Bag Housing for FELIX Premium, FELIX 2 Premium and DART Uprights — SKU 7143ER
- SEBO Handle Tube for FELIX Premium and FELIX 2 Premium — Adjustable Handle — SKU 7081ER
- SEBO Valve Disc for FELIX Premium, FELIX 2 Premium and DART Uprights — SKU 7025
- SEBO Valve Spring for FELIX Premium, FELIX 2 Premium and DART — New Version — SKU 8128UL
- SEBO Hose Duct for FELIX Premium Uprights — Black — SKU 7090SW
- SEBO Cord Hook for FELIX Premium Uprights — Black — SKU 7027SW
- SEBO Dust Bag Housing Cover for FELIX Premium - Black — SKU 7093SW
- SEBO Filter Cover for FELIX Premium Uprights — Black — SKU 7091SW
- SEBO Exhaust Filter Clamp for FELIX Premium Uprights — Silver — SKU 7017SB
- SEBO Lower Housing for FELIX Premium Upright — Black — SKU 7173SE
- SEBO Tube Plug for DART — Gray Black — SKU 7076GS
- SEBO Handle Grip Set for FELIX Premium — Black, 2 Pieces with Grommet, Clamp and Screws — SKU 7164GSSW
- SEBO Power Supply Cord for FELIX and DART Uprights - Dark Gray — SKU 7127DG
- SEBO Complete Switch Assembly for FELIX Premium — Black — SKU 7038SW
- SEBO Complete Silver Hose for FELIX Premium, FELIX 2 Premium and DART — SKU 7050SB
- SEBO Handle Release Button for FELIX Premium — Black — SKU 7082SW
- SEBO Filter Indicator Assembly for FELIX and DART Uprights — SKU 7094ER
- SEBO Hose Retaining Ring with Spring for FELIX Premium, FELIX 2 Premium and DART — Orange — SKU 7018OR
- SEBO Switch Lever for FELIX Premium and FELIX 2 Premium Uprights — SKU 7032ER
- SEBO Cover Latch Spring Set for FELIX Premium, FELIX 2 Premium and DART — Old and New Versions — SKU 7024ER
- Genuine SEBO 7029AM FELIX & DART Vacuum Bags – 8 Pack — SKU 7029AM
- SEBO Exhaust Microfilter with Textile Layer for FELIX Onyx — SKU 7095ER04
- SEBO Pre-Motor Filter for FELIX, FELIX 2 and DART Uprights — SKU 7012AM
- SEBO Two-Tool Attachment Clip with Screw for FELIX Premium — Black — SKU 7097SW
- SEBO Crevice Nozzle — Black — SKU 1092SW
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO Premium Parquet Brush for FELIX and AIRBELT K, Onyx Gray and Black — SKU 7200GS
- SEBO Brush Strip Set with End Caps for the 7200GS Premium Parquet Floor Brush - 2 Pieces — SKU 7207ER
- SEBO Button Cover for the Premium Parquet Brush — Gray Black — SKU 7212GS
- SEBO ET-1 Power Head Chassis — Gray Black — SKU 2324GS
- SEBO ET-1 Power Head Bumper — Gray Black — SKU 2302GS
- SEBO Left-Hand Bearing Block for ET-1 and ET-2 Power Heads — Gray Black — SKU 2314GS
- SEBO Toothed Brush Belt 333 3M HTDII-6 for FELIX, DART, ET-1/ET-2 and 370 COMFORT — SKU 2923
- SEBO 5010AM Brush Roller – 12-Inch Standard Bristle — SKU 5010AM
- SEBO Right-Hand Bearing Block for ET-1 and ET-2 Power Heads — Gray Black — SKU 2313GS
- SEBO Spring for the Axle Adjustment Assembly — ET-1 and ET-2 Power Heads — SKU 2929
- SEBO Pile Adjustment Assembly for ET-1 and ET-2 Power Heads — Gray Black — SKU 2316GS
- SEBO Access Door with Axle and Spring for ET-1 and ET-2 Power Heads — Orange — SKU 2909VO
- SEBO Rear Bottom Plate for ET-1 Power Heads — Gray Black — SKU 2304GS
- SEBO Pile Adjustment Knob in Silver for ET-1 and ET-2 Power Heads — SKU 2931SB
- SEBO Power Head Wheel Assembly for ET-1 and ET-2 — Gray Black — SKU 2306GS
- SEBO Foot Pedal with Axle and Spring for FELIX, ET-1, ET-2 and DISCO — Orange — SKU 2937OR
- SEBO Complete Swivel Neck for ET-1 and ET-2 Power Heads — Gray Black — SKU 2307GS
- SEBO Swivel Neck Wiring for ET-1, ET-2 and DISCO Power Heads — SKU 0876ER
- SEBO Back Cover for the TS-Neck — FELIX, ET-1, ET-2 and DISCO, Gray Black — SKU 2947GS
- SEBO Metal Bearing Segments for the TS-Neck Swivel — 6 Piece Set — SKU 2950ER
- SEBO Swivel Neck Release Button with Leaf Spring — Gray Black — SKU 1737GS
- SEBO Release Button Cover for FELIX, ET-1, ET-2 and DISCO Swivel Necks — Gray Black — SKU 2952GS
- SEBO Swivel Neck Slide for FELIX, ET-1, ET-2 and DISCO — Gray Black — SKU 2945GS
- SEBO TS-Neck Socket Cover for FELIX, ET-1, ET-2 and DISCO — Gray Black — SKU 2951GS
- SEBO Swivel Neck Bearing for FELIX, DART, ET-1, ET-2 and DISCO — SKU 2954
- SEBO Right-Hand Swivel Neck Support for ET-1 and ET-2 Power Heads — SKU 2311
- SEBO Left-Hand Swivel Neck Support for ET-1 and ET-2 Power Heads — SKU 2312
- SEBO Micro Safety Switch with Wiring for ET-1 and ET-2 Power Heads — SKU 0880
- SEBO Swivel Neck Support Axle for ET-1 and ET-2 Power Heads — SKU 2928
- SEBO 175 W Brush Motor with Pulley for ET-1 and 370 COMFORT Power Heads — SKU 2973ER
- SEBO Carbon Brush Set for ET-1, ET-2 and DISCO Power Head Motors — SKU 05141S
- SEBO Switch Lever with Leaf Spring for ET-1 and ET-2 Power Heads — SKU 2958ER
- SEBO 175W Printed Circuit Board for ET-1 Power Heads — SKU 2684ER
- SEBO ET-1 Power Head Cover with FELIX Print - Black — SKU 2360SWSE
- SEBO Long Wire Tie for AUTOMATIC X, ESSENTIAL G, FELIX, DART, AIRBELT and ET Power Heads — SKU 5402
- SEBO Motor Pulley for ET-1, ET-2 and 370 COMFORT Power Heads — SKU 2319
- SEBO On/Off Button Lens for Switched ET-1 and ET-2 Power Heads — SKU 2957
- SEBO Brush Light Lens, Right Hand, for ET-1 and ET-2 Power Heads — SKU 2956
- SEBO Screw F 3.9 x 9.5 (DIN 7981) for ET-1 and ET-2 Power Heads — Single — SKU 01027
- SEBO Hose Duct for FELIX Premium — Dark Blue — SKU 7090DB
- SEBO Cord Hook for FELIX Premium Uprights — Dark Blue — SKU 7027DB
- SEBO Dust Bag Housing Cover for FELIX Premium - Dark Blue — SKU 7093DB
- SEBO Filter Cover for FELIX Premium Uprights — Dark Blue — SKU 7091DB
- SEBO Lower Housing for FELIX Premium Uprights — Dark Blue Indigo — SKU 70166SE
- SEBO Handle Grip Set for FELIX Premium — Dark Blue, 2 Pieces with Grommet, Clamp and Screws — SKU 7164DB
- SEBO Complete Switch Assembly for FELIX Premium — Dark Blue — SKU 7038DB
- SEBO Handle Release Button for FELIX Premium — Dark Blue — SKU 7082DB
- SEBO Two-Tool Attachment Clip with Screw for FELIX Premium and DART — Gray Black — SKU 7097GS
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO ET-1 Power Head Cover with FELIX Print - Dark Blue — SKU 2361DBSE
- SEBO Hose Duct for FELIX Premium and DART Uprights — Arctic White — SKU 7090WE
- SEBO Cord Hook for FELIX Premium and DART Uprights — White — SKU 7027WE
- SEBO Dust Bag Housing Cover for FELIX Premium and FELIX 2 Premium - White — SKU 7093WE
- SEBO Filter Cover for FELIX Premium, FELIX 2 Premium and DART — Arctic White — SKU 7091WE
- SEBO Lower Housing for FELIX Premium and FELIX 2 Premium Uprights — White — SKU 7159WESE
- SEBO Handle Grip Set for FELIX Premium, FELIX 2 Premium and DART — White, 2 Pieces with Hardware — SKU 7164WE
- SEBO Complete Switch Assembly for FELIX Premium and FELIX 2 Premium — White — SKU 7038WE
- SEBO Handle Release Button for FELIX Premium and FELIX 2 Premium — White — SKU 7082WE
- SEBO Two-Tool Attachment Clip with Screw for FELIX Premium and FELIX 2 Premium — White — SKU 7097WE
- SEBO Crevice Nozzle for ESSENTIAL G, 300/350 and FELIX — Light Gray — SKU 1092JE
- SEBO ET-1 Power Head Chassis — Light Gray — SKU 2324HG
- SEBO ET-1 Power Head Bumper — Light Gray — SKU 2302HG
- SEBO Left-Hand Bearing Block for Light Gray ET-1 Power Heads — SKU 2314HG
- SEBO Right-Hand Bearing Block for Light Gray ET-1 Power Heads — SKU 2313HG
- SEBO Pile Adjustment Assembly for Light Gray ET-1 Power Heads — SKU 2316HG
- SEBO Rear Bottom Plate for ET-1 Power Heads — Light Gray — SKU 2304HG
- SEBO Pile Adjustment Knob for FELIX Premium and ET-1 Power Heads — Light Gray — SKU 2931HG
- SEBO Power Head Wheel Assembly for ET-1 and 370 COMFORT — Light Gray — SKU 2306HG
- SEBO Complete Swivel Neck for ET-1 Power Heads — Light Gray — SKU 2307HG
- SEBO Back Cover, TS-Neck, for FELIX Premium and ET-1 Power Heads — Light Gray — SKU 2947HG
- SEBO Swivel Neck Release Button with Leaf Spring — Light Gray — SKU 1737HG
- SEBO Release Button Cover for FELIX Premium and ET-1 Swivel Necks — Light Gray — SKU 2952HG
- SEBO Swivel Neck Slide for FELIX Premium and ET-1 Power Heads — Light Gray — SKU 2945HG
- SEBO TS-Neck Socket Cover for FELIX Premium and ET-1 Power Heads — Light Gray — SKU 2951HG
- SEBO ET-1 Power Head Cover with FELIX Print - White — SKU 2331WESE
- SEBO Hose Duct for FELIX Premium Uprights — Red — SKU 7090DR
- SEBO Cord Hook for FELIX Premium Uprights — Red — SKU 7027DR
- SEBO Dust Bag Housing Cover for FELIX Premium - Dark Red — SKU 7093DR
- SEBO Filter Cover for FELIX Premium Uprights — Dark Red — SKU 7091DR
- SEBO Lower Housing for FELIX Premium Upright — Red — SKU 7186SE
- SEBO Handle Grip Set for FELIX Premium — Red, 2 Pieces with Grommet, Clamp and Screws — SKU 7164GSDR
- SEBO Complete Switch Assembly for FELIX Premium — Red — SKU 7038DR
- SEBO Handle Release Button for FELIX Premium — Red — SKU 7082DR
- SEBO Exhaust Microfilter with Textile Layer for FELIX Rosso — SKU 7095ER12
- SEBO ET-1 Power Head Cover with FELIX Print - Red — SKU 2330DRSE
