Clean Max Upright Motor - Titan T500 Cord Free - 48V DC 14000RPM

Clean Max Upright Motor - Titan T500 Cord Free - 48V DC 14000RPM

$99.99 USD
$99.99 USD
Sale Sold out
Shipping calculated at checkout.

D223-2100
Free Shipping On Orders $100+
Genuine Parts OEM Quality
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Fits the same machines

Clean Max Upright Motor - T...

$99.99

Product details

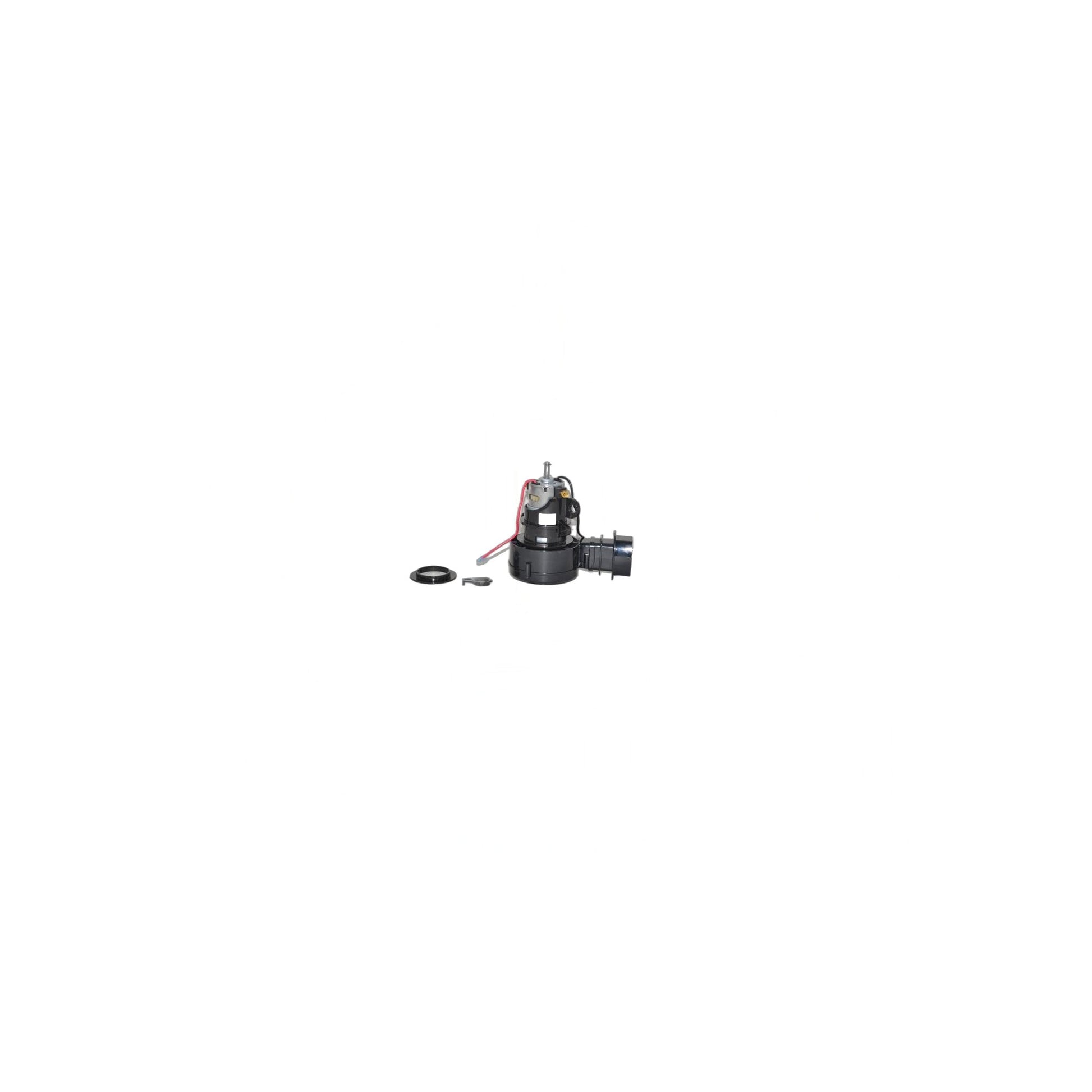

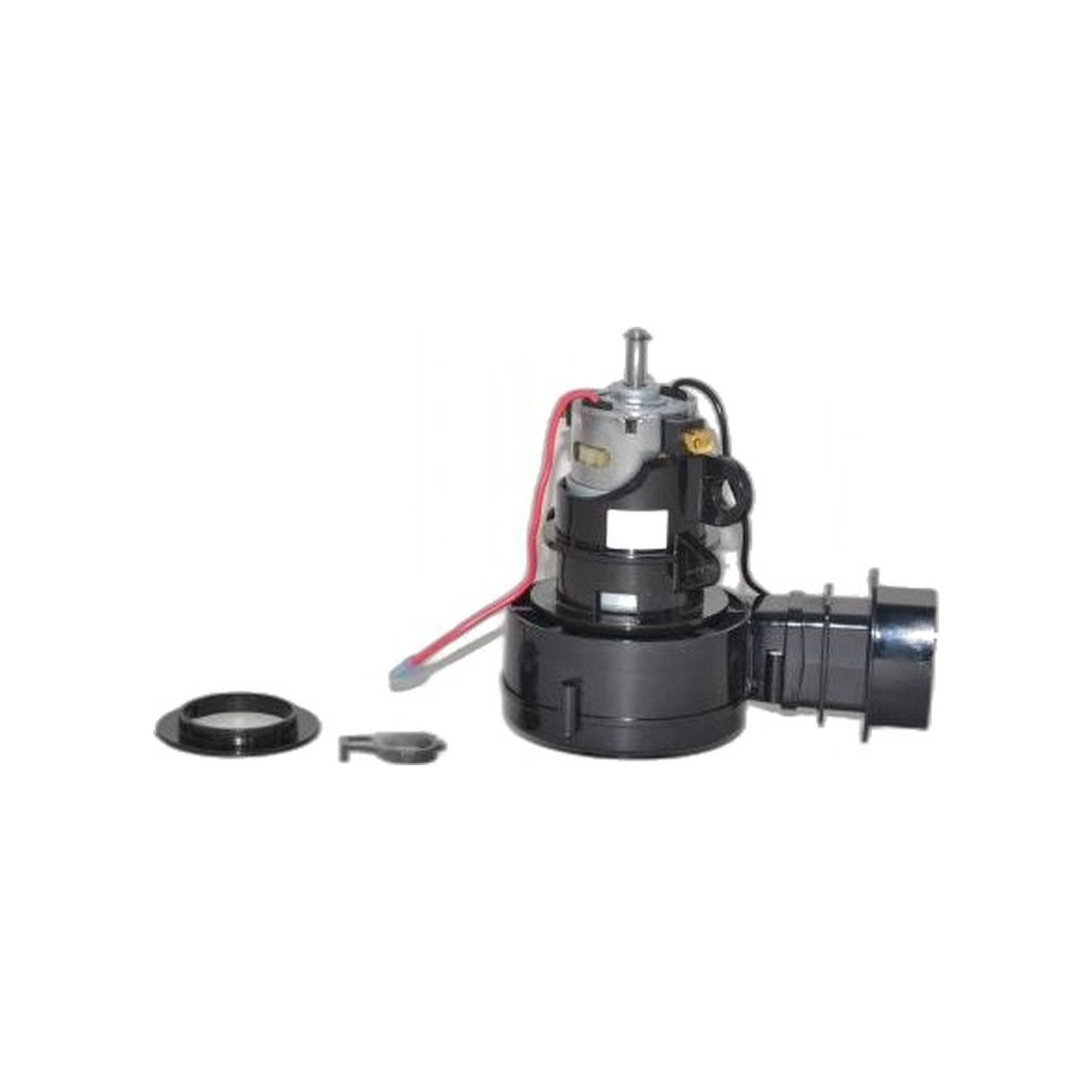

Part D223-2100 is the upright motor built for the Titan T500 cord-free vacuum, a 48-volt DC motor turning at 14,000 RPM. It is also cataloged without the hyphen, as D2232100, and it restores airflow and brush drive to a battery-powered upright that has lost cleaning power.

The same motor drives the CleanMax ZM800 as well as the Titan T500, since both are cord-free uprights built around this 48-volt DC drive unit. On a cordless machine, the motor is essentially the entire power system, so once it goes, the whole vacuum goes with it regardless of how much charge remains in the battery.

A motor nearing the end of its life tends to give warning signs first: a hot smell after a cleaning run, a new grinding or whining note that was not there before, or cutouts partway through a pass that seem to come and go. Total failure looks different only in that there is no warning left, just a fully charged battery and a machine that will not spin up at all.

Before assuming the motor, charge the battery fully and confirm the machine still will not run, since a weak battery pack can mimic some of the same early symptoms. Once the battery is ruled out, disconnect it entirely before opening the motor housing, and note how the wiring is routed before disconnecting it so every lead lands back exactly where it came from. Seat the new motor fully into its mount so vibration does not work it loose over time. We are an authorized dealer for both CleanMax and Titan, and this motor carries the manufacturer's warranty.

  • Part: D223-2100, 48V DC motor, replaces D2232100
  • Speed: 14,000 RPM
  • Fits: CleanMax ZM800, Titan T500
  • Symptom it fixes: lost airflow, unusual motor noise, or a cordless upright that will not start
  • Install note: rule out the battery first, then disconnect it and record wiring positions before removing the old motor
