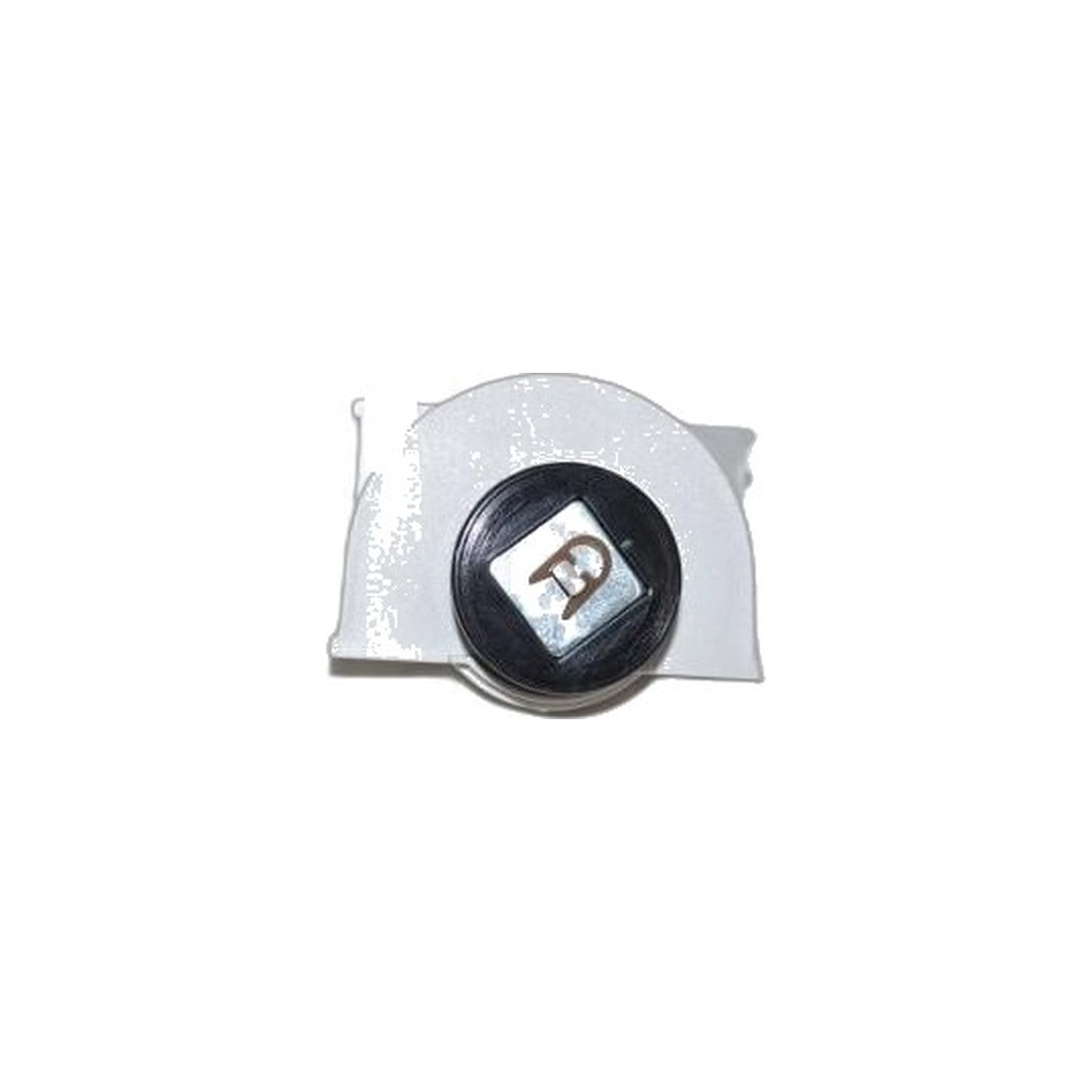

SEBO Left-Hand Bearing Block Assembly for the Duo, Light Gray

Supplied as an assembly rather than a bare moulding, part 3052HG puts the whole left-hand bearing station back into a Duo brush machine in one operation. SEBO shows it at position 70 of the Duo parts diagram, finished in light gray to match the rest of the machine, with the brush drive cog 3007 at 68 and the plain bearing block 3074HG at 69 immediately before it.

Bearing blocks wear from the inside out, and the sequence is always the same. The seat opens up, the shaft gains a little play, and the end of the brush begins to knock and drag rather than spinning freely. From the handle it sounds like a rumble that comes and goes with load, and on the carpet it looks like grooming that has gone patchy at one side. Because this part arrives complete, there is no matching of individual pieces on the bench - which matters on a repair where a fractional misalignment is enough to bring the noise straight back within a week. The right-hand side of the machine uses bearing block 3010HG under its own number, so check which end you have out before ordering, and look at the spring 3028 and the pulleys either side while the assembly is off.

• Part number: 3052HG
• Fits: the SEBO Duo brush machine
• Side: left hand
• Colour: light gray
• Supplied: as a complete assembly
• Diagram position: 70 on the SEBO Duo parts diagram
• Opposite side: right-hand bearing block 3010HG
• Related: bearing block 3074HG, brush drive cog 3007, spring 3028

Anyone searching a SEBO Duo bearing block, a Duo left hand brush bearing or the number 3052HG has the correct listing. Genuine SEBO assembly supplied by an authorized dealer, shipping in 2-5 business days.
