SEBO Spring Bracket and Switch Assembly for ET-H Power Head

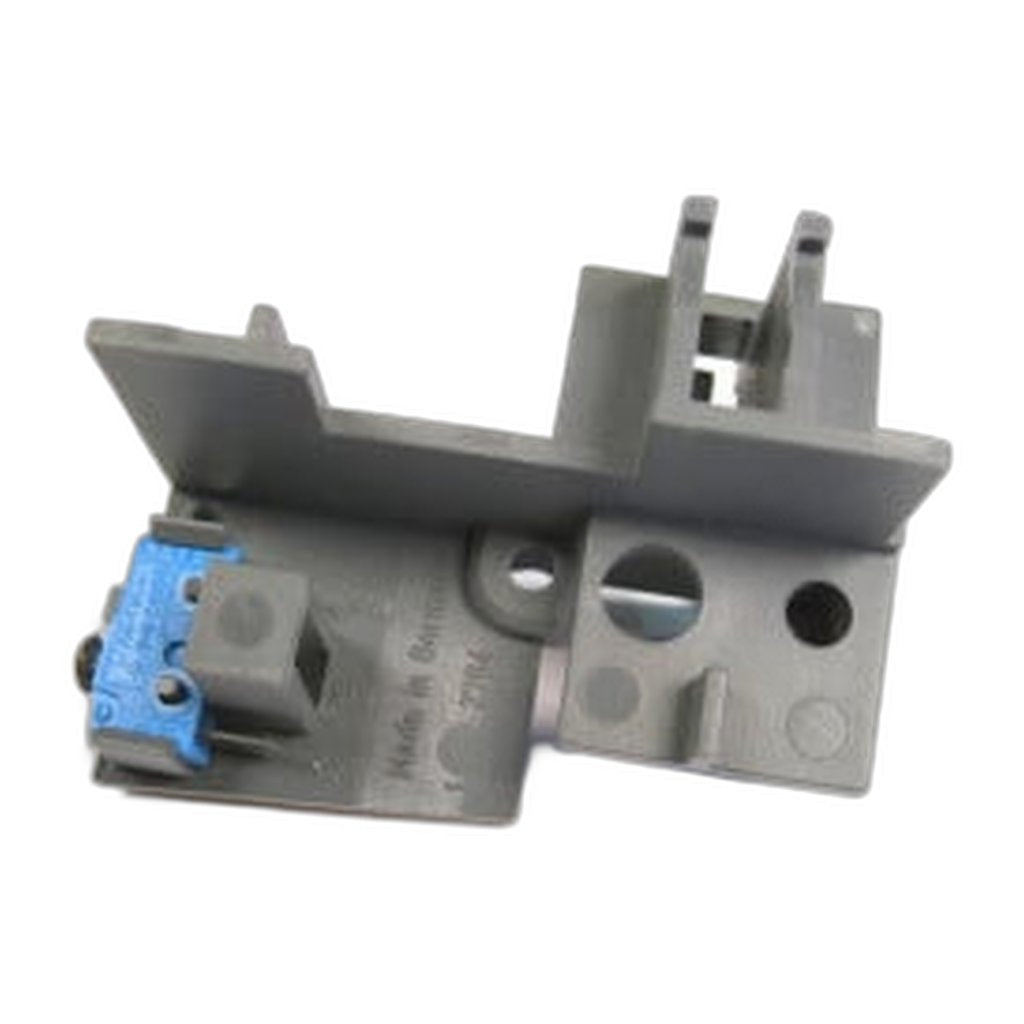

Sold as one unit, part 2764UL pairs the sprung bracket with the switch it operates on SEBO's ET-H power head, so the moving component and the contact it triggers are renewed together and stay in adjustment with each other.

That pairing is the reason to buy it this way. A bracket and a switch that have worked as a set take up each other's tolerances over the years, and replacing only one of them frequently leaves the pair out of step — the spring returns but no longer travels far enough to close the contact, or the new switch clicks before the bracket has finished moving.

• Spring bracket and switch supplied as one complete unit for the ET-H
• Restores spring return and positive switching in a single part
• Arrives assembled, with no separate switch to source
• Genuine SEBO part 2764UL

Age shows up in two ways here. Either the spring loses tension so the bracket no longer returns cleanly, or the switch stops making a reliable contact and begins to work only sometimes. Both leave the head behaving unpredictably: cutting in and out as the machine is worked, refusing to respond until the nozzle is nudged, or staying on when it should have stopped. Because the two work as a pair, taking the assembly in one piece avoids chasing the same fault twice.

Fitting it is a matter of transferring the mounting position rather than adjusting anything. The assembly arrives set up, so the work is putting it back where the old one sat and confirming the bracket moves through its full travel before the head is closed. Check the wiring to the switch for chafe or discolouration while it is exposed.

Unplug the machine and photograph the bracket position before you take anything apart, so the new unit goes back at the same angle. If the head is also cutting out at the roller, the control board for this nozzle is listed separately as 2791AM. Searches for a SEBO ET-H switch or genuine SEBO 2764UL end here.
