SEBO
SEBO Pile Adjustment Axle for G Series and 300/350 Uprights
SEBO Pile Adjustment Axle for G Series and 300/350 Uprights
SKU:2861
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.
Return eligibility
Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.
Shipping and refunds
For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.
Received a defective item?
Contact us so we can help arrange a prepaid return label and replacement.
Please review our Return & Refund Policy for complete details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
SEBO Pile Adjustment Axle f...
$10.00
Product details

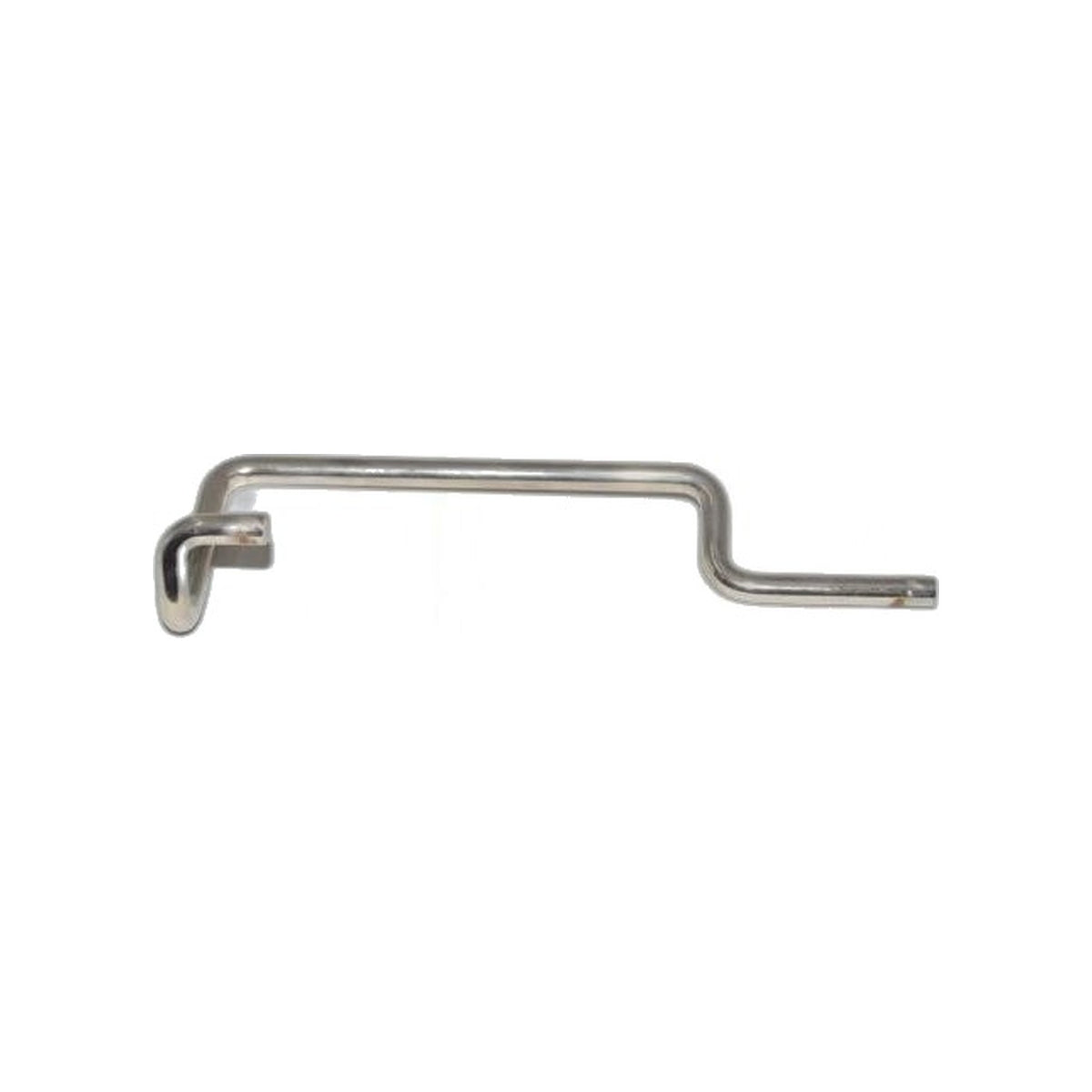

Every notch of carpet height on these uprights is carried by a single shaft. Part 2861 is that shaft: the pile adjustment axle shared by the SEBO ESSENTIAL G1, ESSENTIAL G2, ESSENTIAL G4 and ESSENTIAL G5 and by the 300 MECHANICAL and 350 MECHANICAL, drawn at position 118 on the SEBO 300/350 Mechanical sheet.
Turning the height control rotates this axle, and the axle in turn sets how far the nozzle drops toward the floor. Everything else in the mechanism — the thrust members, the spring, the clamps, the rubbing plate — exists to hold it steady and let it index cleanly. An axle that has been bent, or worn where it passes through its bearing points, tends to bind at one end of its travel, or to leave the nozzle sitting lower on one side than the other so the brush grooms unevenly and one edge of the head wears its strip away first. A machine that will only hold the deepest setting, or that fights the operator halfway through the range, is showing the same fault.
The parts that ride on this axle are inexpensive and are already exposed once the chassis is open, so there is little sense refitting tired ones: clamp 2856 captures the spring, spring 2867 loads the assembly, thrust member 2834 bears on the axle with 2833 serving the knob, rubbing plate 2869HG is the sacrificial face, axle clamp 2849 retains the pile wheel axle, and pile adjustment wheel 5174HG completes the set. Common searches are SEBO pile adjustment axle, G series carpet height shaft and 300 MECHANICAL height adjustment axle.
- SEBO part 2861 — pile adjustment axle
- Fits: SEBO ESSENTIAL G1, G2, G4 and G5, plus the 300 MECHANICAL and 350 MECHANICAL
- Parts-diagram position: 118 on the SEBO 300/350 Mechanical sheet
- Typical symptom: height control binding, or a nozzle sitting lower on one side
- Related hardware: 2856 clamp, 2867 spring, 2834 and 2833 thrust members, 2869HG rubbing plate, 2849 axle clamp, 5174HG pile adjustment wheel
- Genuine SEBO; ships in 2–5 business days
