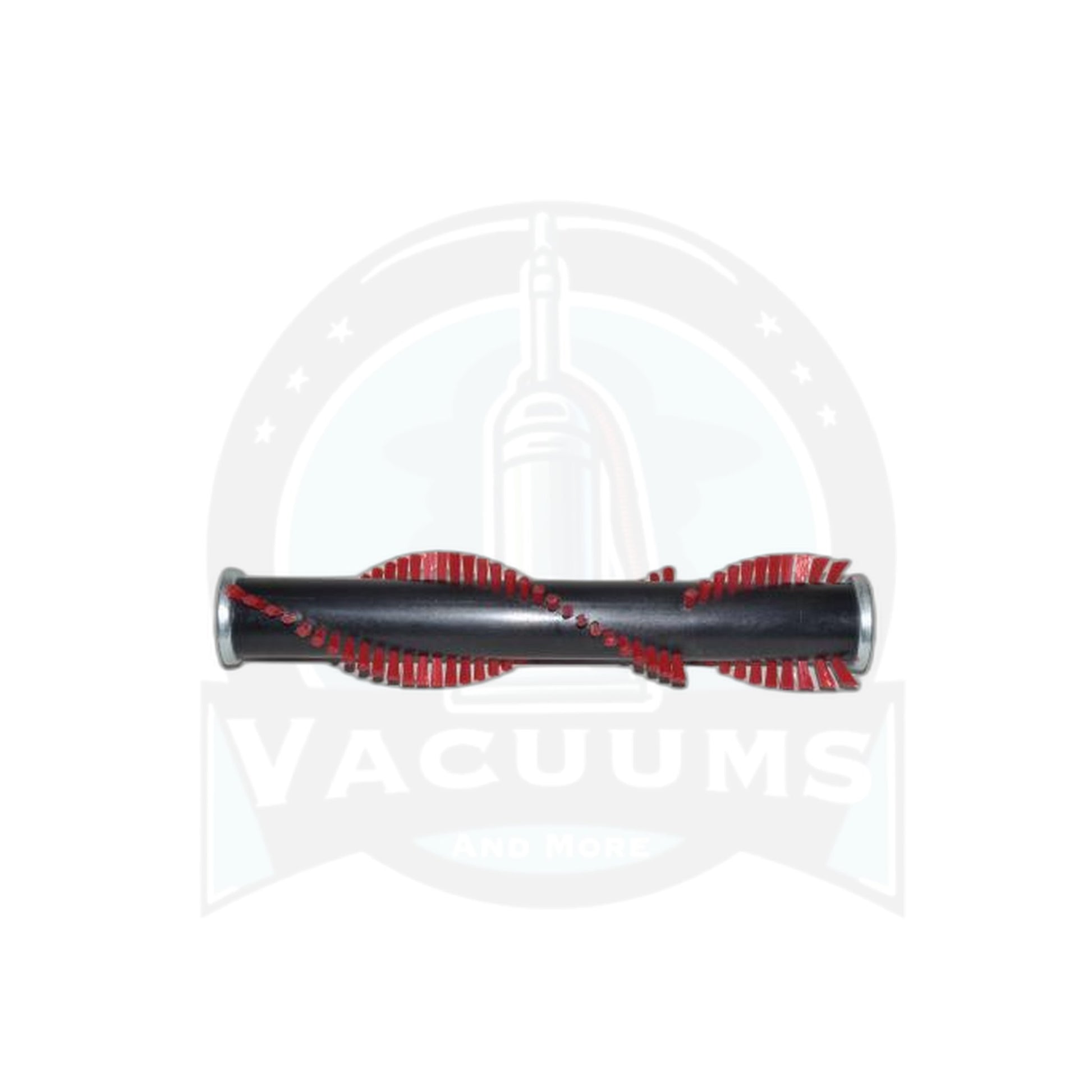

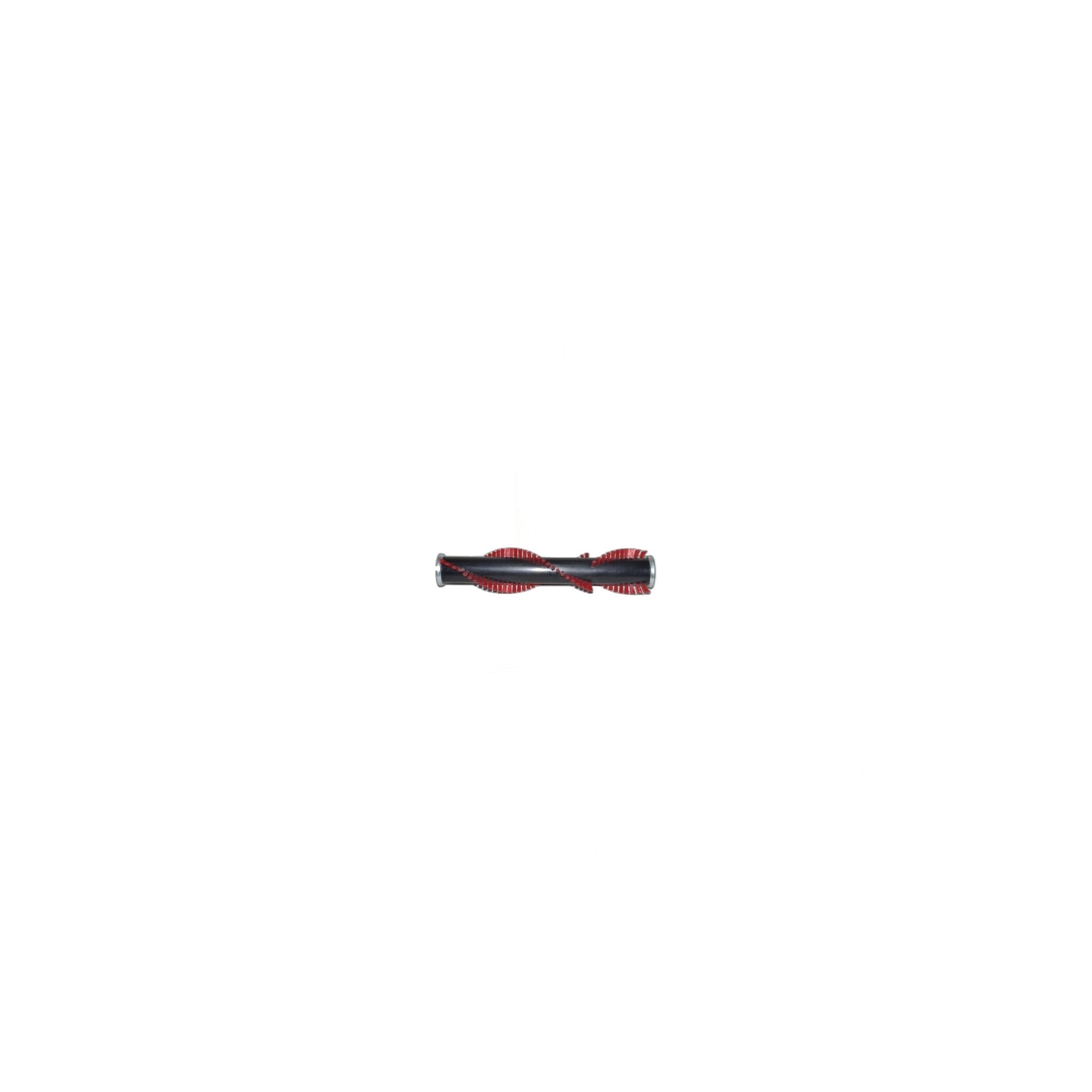

Eureka Brush Roll - Sanitaire SC5500, S5000, EON Upright

Sanitaire's SC5500, S5000 and EON commercial uprights share one brush roll, catalogued under Eureka's parts system as part 173691, working just ahead of the airflow to loosen dirt from the pile before it is pulled up.

The wear here builds gradually rather than announcing itself in one moment. Bristle rows shorten and splay a small amount at a time until they can no longer press down through the pile, and a machine that once left visible lines behind it now merely brushes across the surface instead. Commercial duty pushes this along faster, since the roller turns for most of a working day, often over grit fine enough to file the bristle tips down.

Because the change happens slowly, it is easy to miss during routine use. A more reliable test than eyeballing bristle length is passing the machine twice over the same short strip of carpet and checking whether the second pass still turns up visible soil the first pass should have caught.

Frayed, flattened or unevenly worn tufts mean the roll is done no matter how the rest of the machine sounds. Cutting wound hair and thread free on a regular basis is the single habit that extends the life of whichever roll is currently installed.

• Part: 173691, brush roll
• Fits: Eureka/Sanitaire S5000A, SC5500A, SC5500B, SC5505A
• Replace when: a second pass over the same carpet strip still lifts visible soil
• Upkeep: clear wound hair and thread from the roller on a regular schedule
