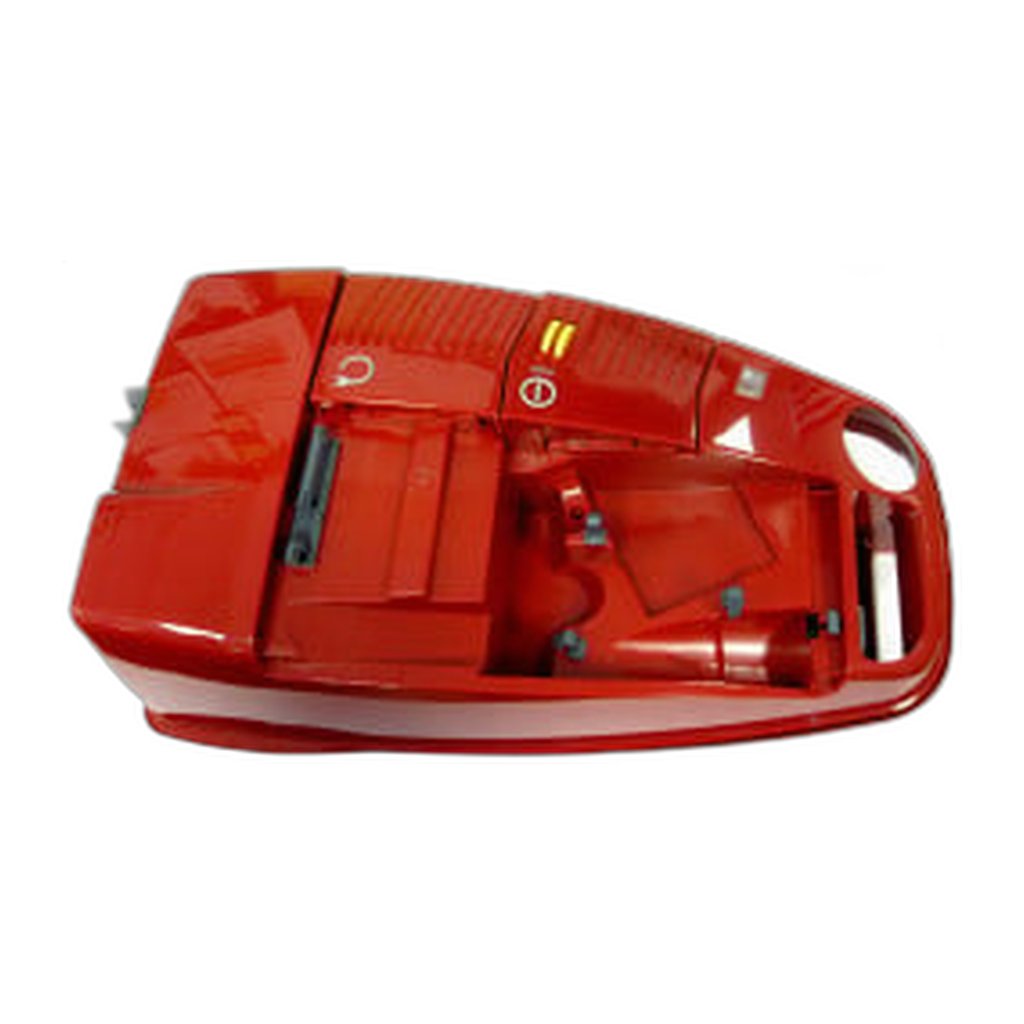

SEBO Top Casing in Red for C2.1

A dropped canister tends to break in the same place: the upper shell. SEBO part 6127DR is that shell in red, the moulded top half that carries the lid, locates the internals and gives the machine its outline. It is what a technician orders when the plastic is cracked rather than the mechanism worn.

Beyond the obvious cosmetic repair, a split top casing lets the body flex where it should stay rigid, which unloads the seams around it and can open the sealed path the vacuum depends on. Colour-matched red keeps a repaired machine looking original instead of patched.

• Listed by SEBO under: the C1.1 and C2.1 canisters, in the red C2.1 finish
• Component: upper housing shell
• Colour: red, moulded to the original factory pattern
• Part number: 6127DR
• Matching red trim: on/off pedal 6309DR, cable rewind pedal 6006DR, attachment cover 6383AM
• Closes onto: bottom casing 6197DG in dark gray

Shell replacement is the one repair where the colour has to be right first time, since nothing about a red machine can be disguised by a gray panel. Working through the numbers above leaves a rebuilt canister that reads as factory rather than salvage.

Anything mounted through the shell has to be transferred or renewed as the casing changes, so it helps to know the numbers before starting. The suction neck is 6319UL, the electronic controller with its switch is 6295ER, and the foam bumper that runs around the body is 6046UL.

The clips holding the two halves together are 6086HG singly or 6086ER in threes, and both are worth renewing while the body is open — old clips rarely survive a second removal. The microfilter holder behind the shell is 6003DG. Genuine SEBO from an authorized SEBO dealer. Ships in 2–5 business days.
