SEBO Pile Adjustment Axle for SOFTCASE CE12

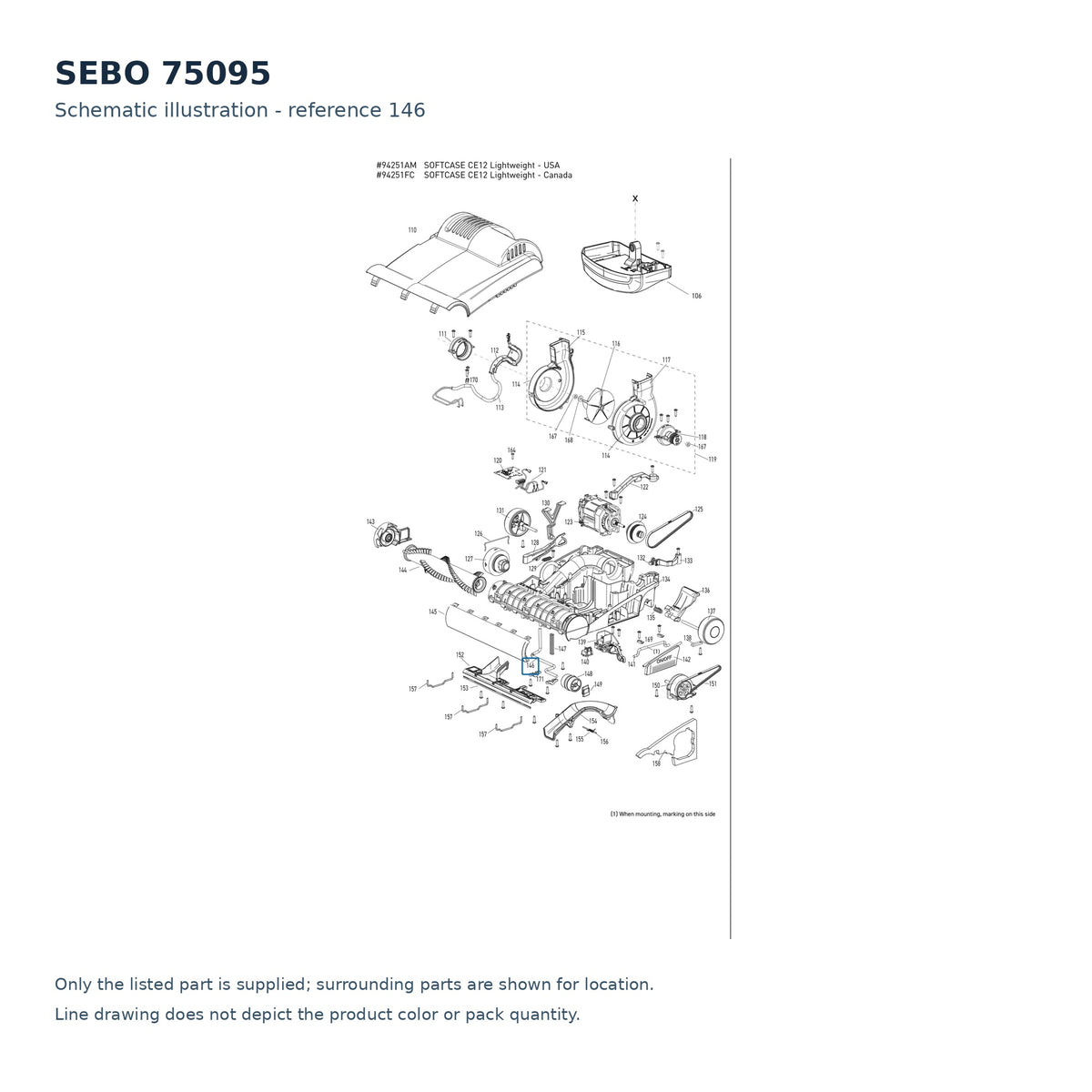

Brush height on the SOFTCASE CE12 is set by moving an axle, and part 75095 is that axle. SEBO gives it position 146 in the exploded parts list for the machine, drawn between the right hand bearing block 75114GS at position 143 and the left hand bearing block 75113 at position 150, which places it squarely in the nozzle group rather than anywhere near the motor.

SEBO's own naming for the parts that surround it makes the mechanism plain. Number 2849 is catalogued as the pile wheel axle clamp and appears at position 138, and 5155GS is the rubbing plate for the pile adjustment axle. The axle carries the pile wheels, the clamp holds it, the rubbing plate takes the wear, and the whole assembly rises and falls as the brush height selector 75076OR is turned. Every one of those movements loads this axle, which is why a machine with high hours starts to feel stiff or notchy through the height control long before anything visibly breaks. Check it for scoring, bending and seizure whenever the machine is already stripped for other work.

• Order as: 75095, the pile adjustment axle
• Machine: the SEBO CE12 Softcase upright
• Diagram position: 146 on the SOFTCASE CE12 parts list
• Sits between: bearing block right hand 75114GS at 143 and bearing block left hand 75113 at 150
• Sold: each
• Order alongside: 5155GS rubbing plate for the pile adjustment axle, 2849 pile wheel axle clamp at position 138, 75121GS pile adjustment wheel, 75086 height adjustment slider at position 128, 75090 pile adjustment spring

Genuine SEBO replacement, ordered as 75095 and the correct answer to a search for a CE12 Softcase pile adjustment axle or a SEBO brush height axle. Ships within 2-5 business days.
