Kenmore Motor Overload Protector - 21814
Kenmore Motor Overload Protector - 21814
SKU:KC76KDGSZ000
95 in stock
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer FREE shipping on orders of $100 or more within the continental United States.
Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.
Returns & Exchanges
Returns & Exchanges
We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.
To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Kenmore Motor Overload Prot...
$25.99
Product details

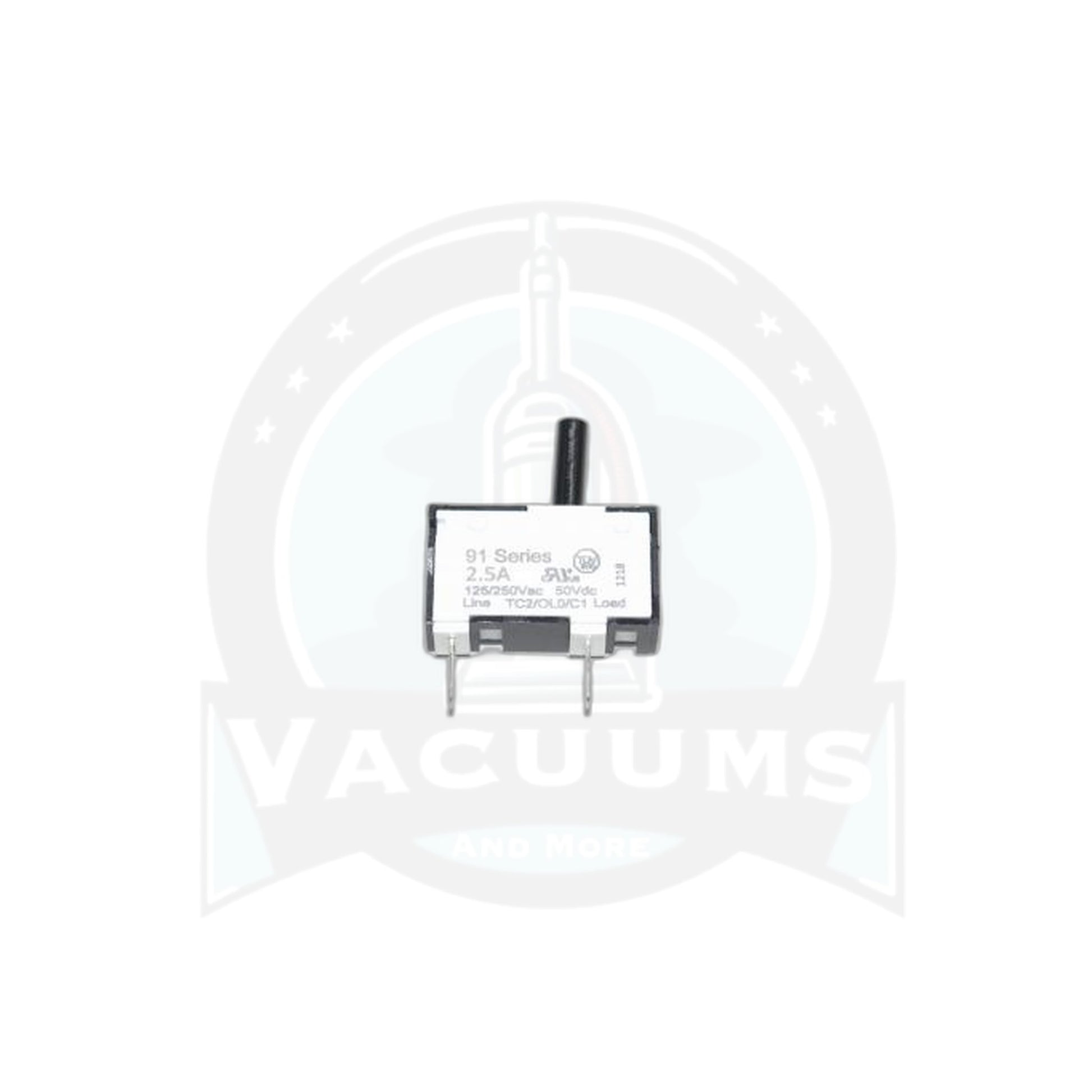

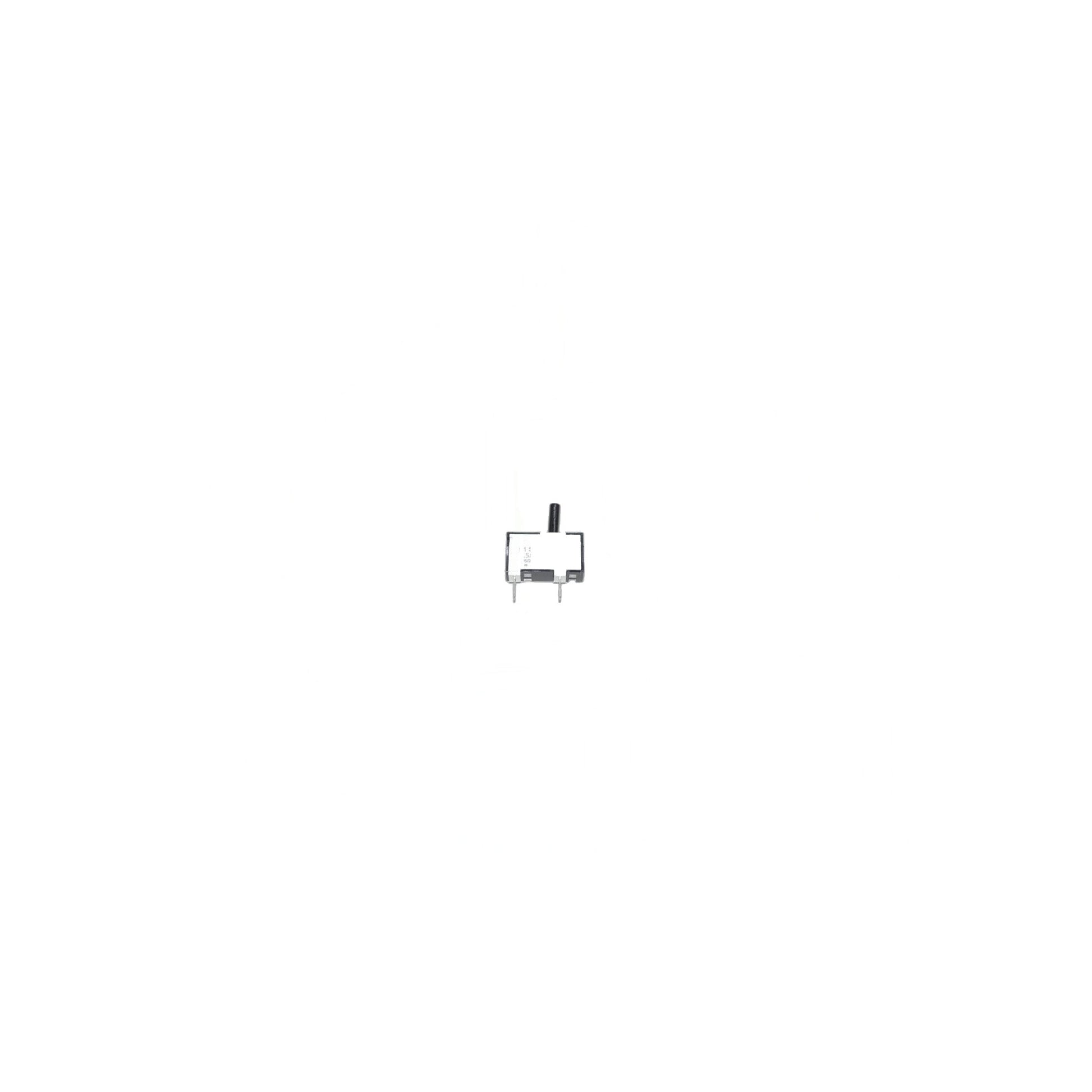

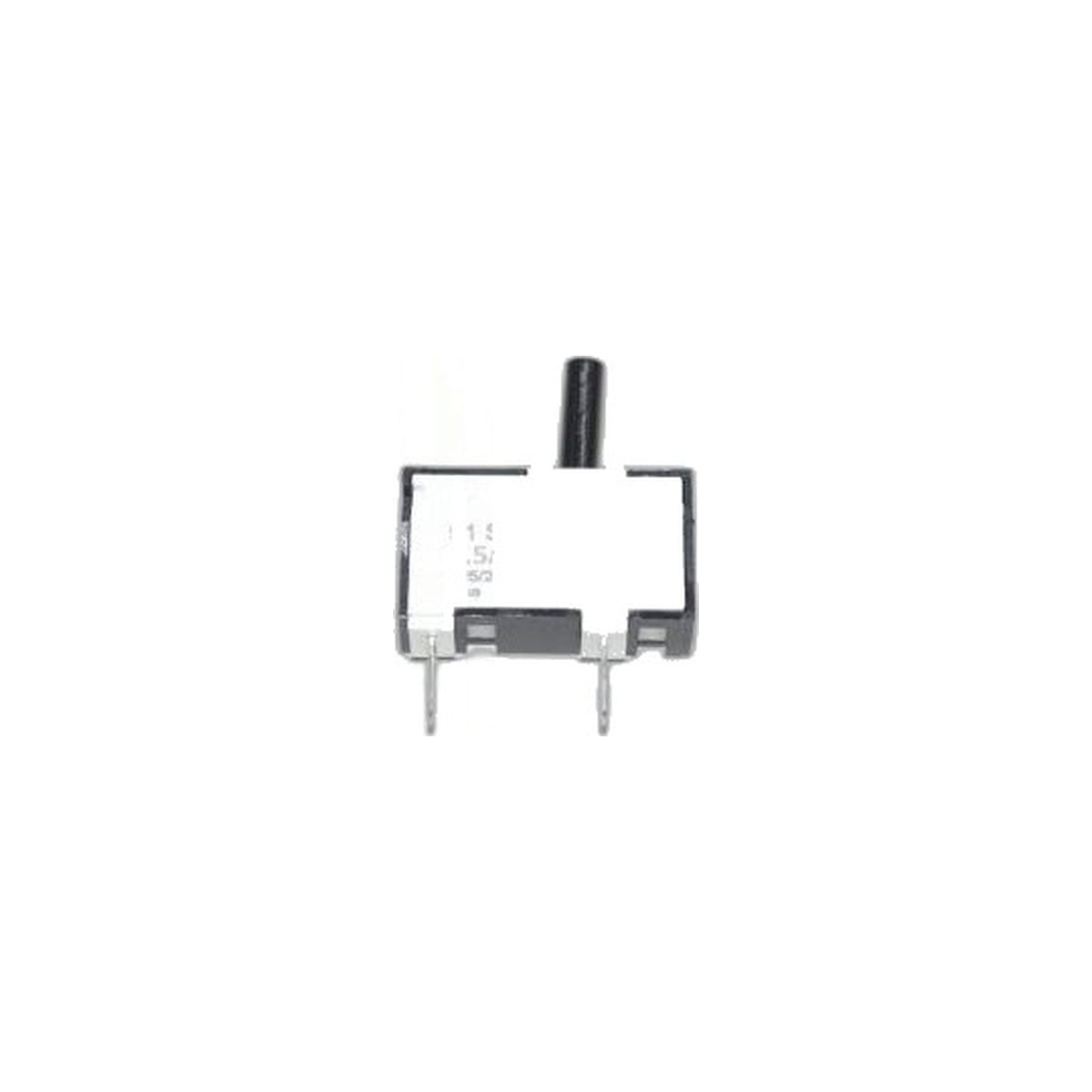

When a Kenmore vacuum shuts itself off partway through a room and comes back to life twenty minutes later, this is the part doing it. The overload protector, Kenmore number KC76KDGSZ000, is a thermal reset switch that cuts current to the motor when the motor starts drawing more than it should.
It fits a wide run of Kenmore machines: the 21814, 31150, 81214, 81414, 81614 and 81714, the BC4002, BC4026 and BC4027, the BU1005 and BU1018, and the Panasonic MC-UG729.
Worth knowing before you order: a protector that trips is often doing its job. Check for a full bag, a loaded filter or a blocked hose first, because those make the motor work hard enough to trip a healthy switch. Replace the protector when the vacuum will not restart at all once it has cooled, or when it trips straight away on a machine whose airways are clear.
