Ametek Vacuum Motor Carbon Brush Assembly - 115330, 115334, 115519 Series
Ametek Vacuum Motor Carbon Brush Assembly - 115330, 115334, 115519 Series
SKU:33415-4
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer FREE shipping on orders of $100 or more within the continental United States.
Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.
Returns & Exchanges
Returns & Exchanges
We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.
To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Ametek Vacuum Motor Carbon ...
$11.99
Product details

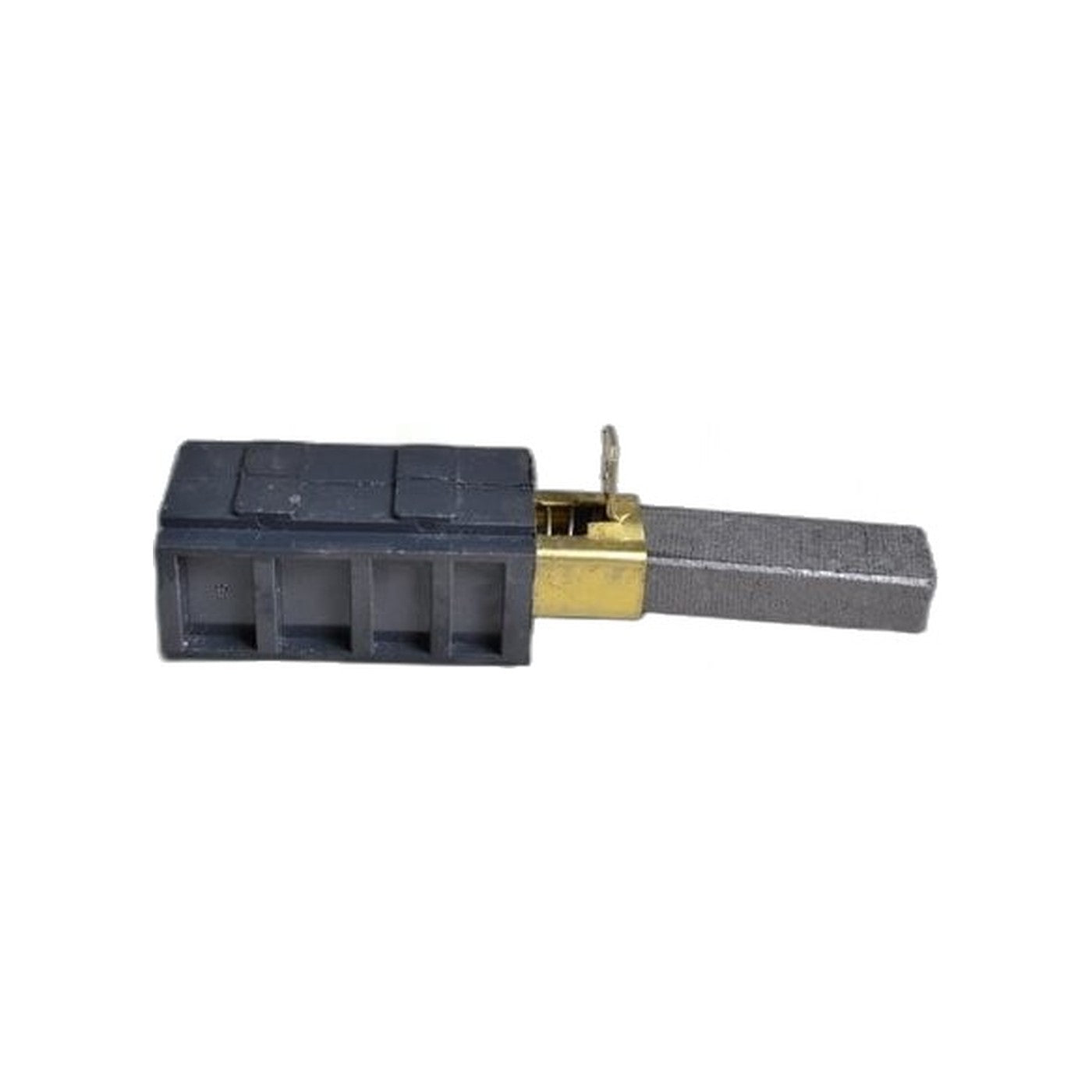

Ametek's box-type carbon brush assembly replaces the older split-carbon brush used on earlier 7.2-inch Lamb motors, and this OEM part, 33415-4, is the current design fitted to that mounting style. The brush sits in a boxed holder rather than a split sleeve, so a motor that still carries the older split-carbon brush takes this boxed part as its replacement rather than a like-for-like copy of what came out.
Worn brushes announce themselves through the motor housing before the motor itself gives out: sparking flashes visible at the vents, suction that drops off and then recovers, a scratchy hum layered under the normal motor sound, and eventually a hot, burnt smell as the brush face runs down toward the spring. Replace both brushes as a pair.
This assembly is confirmed for a wide range of Ametek Lamb 7.2-inch motors: 115330, 115334, 115519, 115648, 115837, 115862, 115937, 115937-Z, 115948, 115948-B, 115950, 115962, 115963, 116103, 116117-11, 116118, 116119, 116136, 116137, 116138, 116139, 116141, 116154, 116154-11, 116161, 116262, 116262-01, 116264, and 116954-13.
- Part: 33415-4, OEM box-type carbon brush assembly
- Fits: the 29 Ametek Lamb 7.2-inch box-type motor numbers listed above
- Symptoms of wear: sparking at the housing, uneven suction, burning smell
- Note: not interchangeable with the earlier split-carbon brush design
- Install note: replace both brushes together and inspect the commutator for scoring
