SEBO Suction Unit for the BALANCE A1 — Magenta

Rebuilding a magenta BALANCE A1 around a sound set of accessories starts here. Part number 95025MA supplies the complete suction unit in magenta, the finish SEBO gives the A1 it sells as 95012AM, and the parts diagram lists it at position 1.

What arrives is the whole powered assembly, not a subcomponent of it. That is what makes it the answer to damage a smaller order cannot fix: a housing cracked in a fall, a motor section that has stopped running, or a machine bought cheaply with a broken body and a perfectly good set of tools. Everything downstream carries on — the power brush 95030AM at position 15, the MicroCare and MultiCare rollers 8816AM and 8815AM at positions 16 and 17, the cyclone unit 8820AM at position 4 and the motor protection filters 8850AM at position 3 all transfer straight across to the new unit.

Colour is the ordering trap on this part. All three finishes share position 1 on the drawing, so the number rather than the illustration is what separates them: magenta is 95025MA, gray is 95025GA and blue is 95025BA.

Weigh condition as carefully as colour. A replacement body earns its place on a machine whose accessories are intact, since the suction tube 8831AM at position 9, the extension hose 8830AM at position 10 and the LED crevice nozzle 8862AM at position 12 all move across untouched. Where the housing is sound and only suction has faded, the dust container 8801AM and the motor protection filters 8850AM are the far cheaper starting point.

• Fitment: SEBO BALANCE A1
• Shade: magenta, matching the magenta BALANCE A1 sold as 95012AM

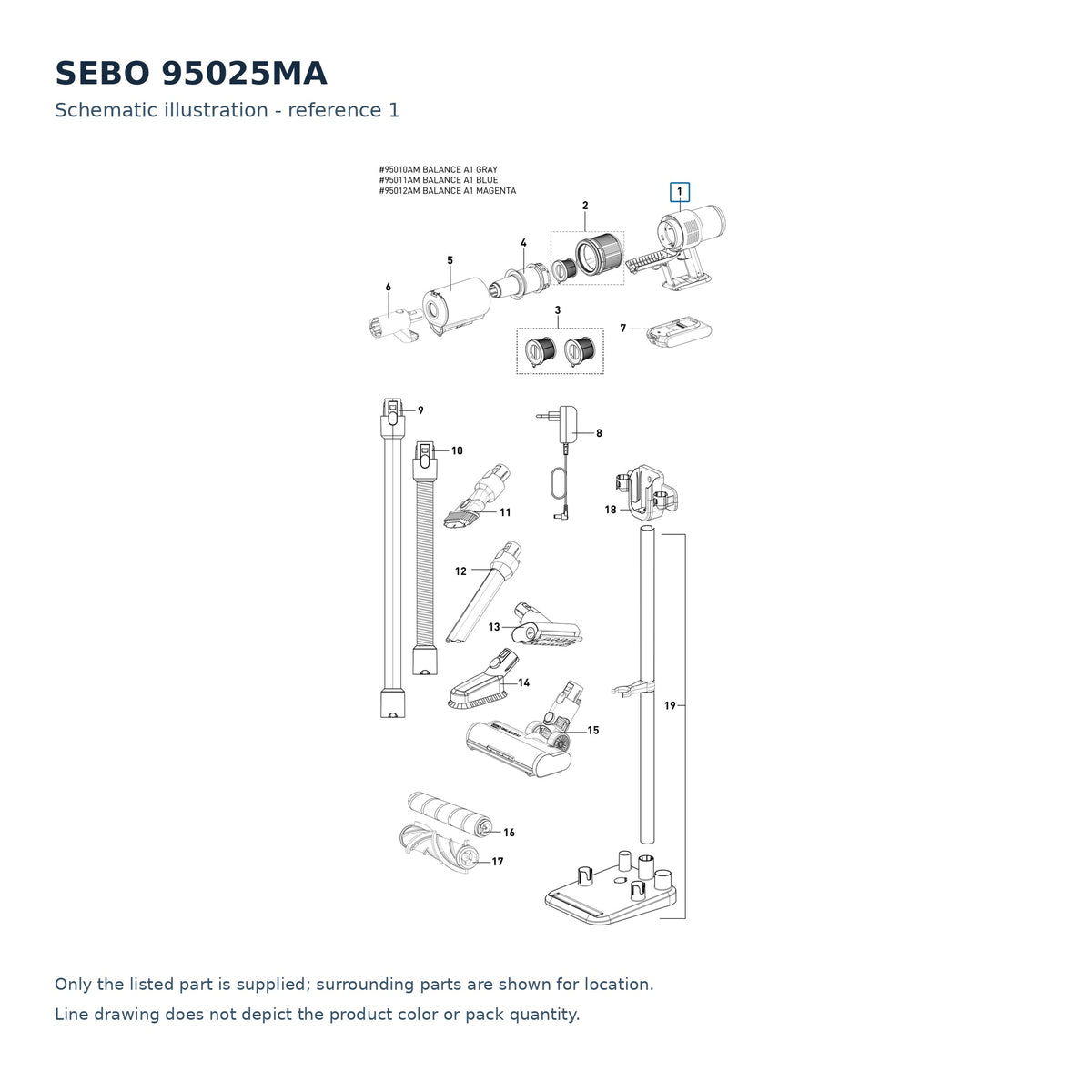

• Drawn at: position 1, BALANCE A1 parts diagram, listed as the magenta suction unit
• SEBO part number: 95025MA
• Same position, other finishes: gray 95025GA, blue 95025BA
• Supplied as: one complete suction unit
• Genuine SEBO assembly, ships in 2–5 business days
