SEBO Suction Unit for the BALANCE A1 — Gray

Gray is the finish on the BALANCE A1 that SEBO sells as 95010AM, and 95025GA is the suction unit that matches it. The drawing puts it at position 1, ahead of everything else, because every other component of the machine mounts onto this assembly.

Follow the air and the reason becomes obvious. Dust enters at the power brush 95030AM (position 15), where either the MicroCare roller 8816AM (position 16) or the MultiCare roller 8815AM (position 17) lifts it off the floor. It travels up the suction tube 8831AM (position 9), spins out in the cyclone unit 8820AM (position 4), and passes the pair of motor protection filters 8850AM (position 3) before it reaches the motor housed in this unit and leaves the machine. Replace the suction unit and you are replacing the powered heart of that chain, not a detail inside it.

Technicians order 95025GA after impact damage, a cracked housing or a motor section that will not run, and generally after the cheaper possibilities have been ruled out. Because SEBO builds the housing in colour, one diagram position carries three separate part numbers, so match the finish on the machine in front of you rather than the picture on the page.

Rule out the inexpensive causes of weak pickup first. A dust container packed to the lid, sold as 8801AM, a cyclone unit 8820AM choked with fine debris, or a loaded pair of motor protection filters 8850AM will each flatten performance on a machine whose motor is in perfect health. When the motor itself is silent, cutting in and out, or running loud and hot, this assembly is what puts it right.

• Fitment: SEBO BALANCE A1
• Shade: gray, matching the gray BALANCE A1 sold as 95010AM
• Rule out first: dust container 8801AM, cyclone unit 8820AM, motor protection filters 8850AM

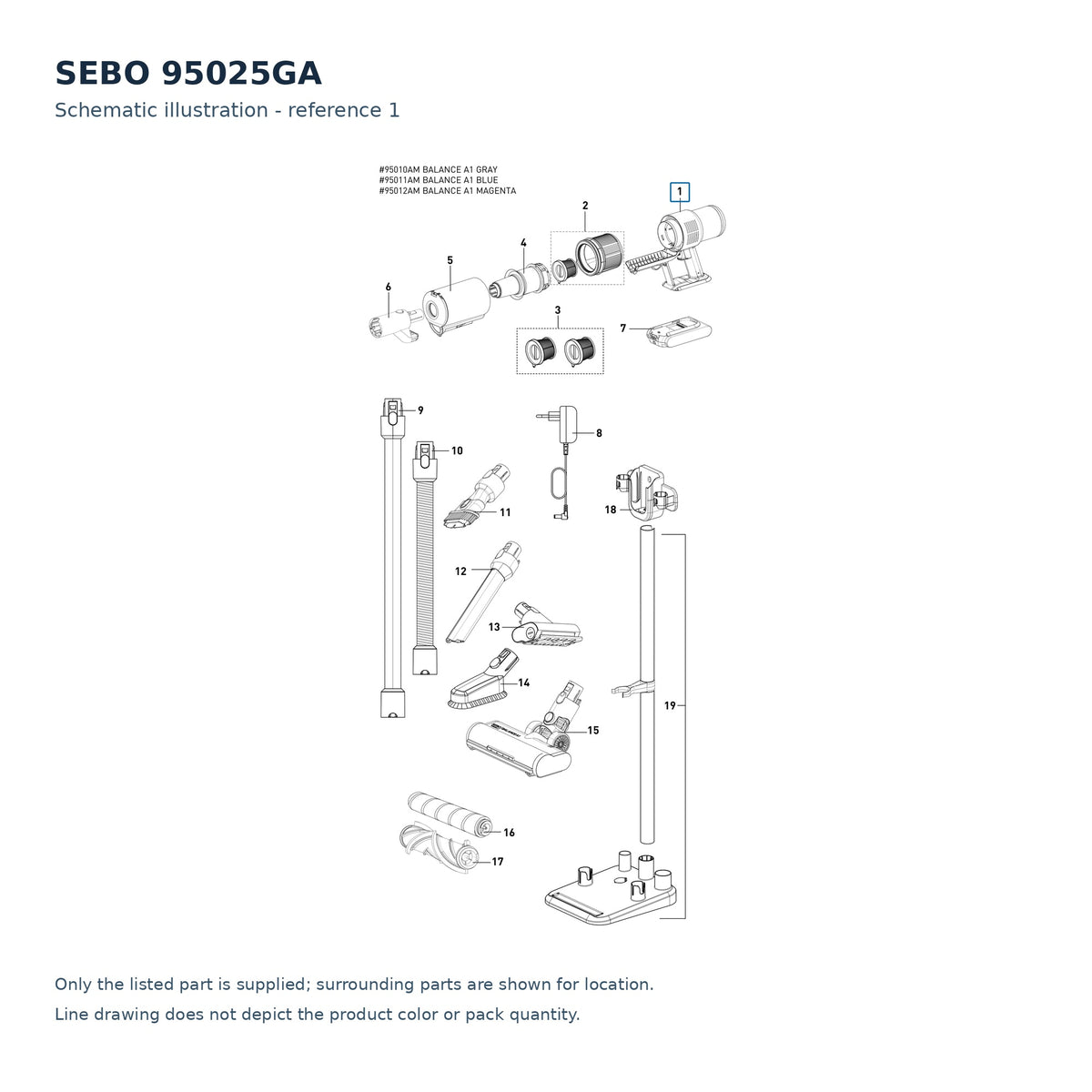

• Drawn at: position 1, BALANCE A1 parts diagram, listed as the gray suction unit
• SEBO part number: 95025GA
• Same position, other finishes: blue 95025BA, magenta 95025MA
• Supplied as: one complete suction unit
• Genuine SEBO assembly, ships in 2–5 business days
