SEBO Power Cord Sealing Adapter for SOFTCASE CE12

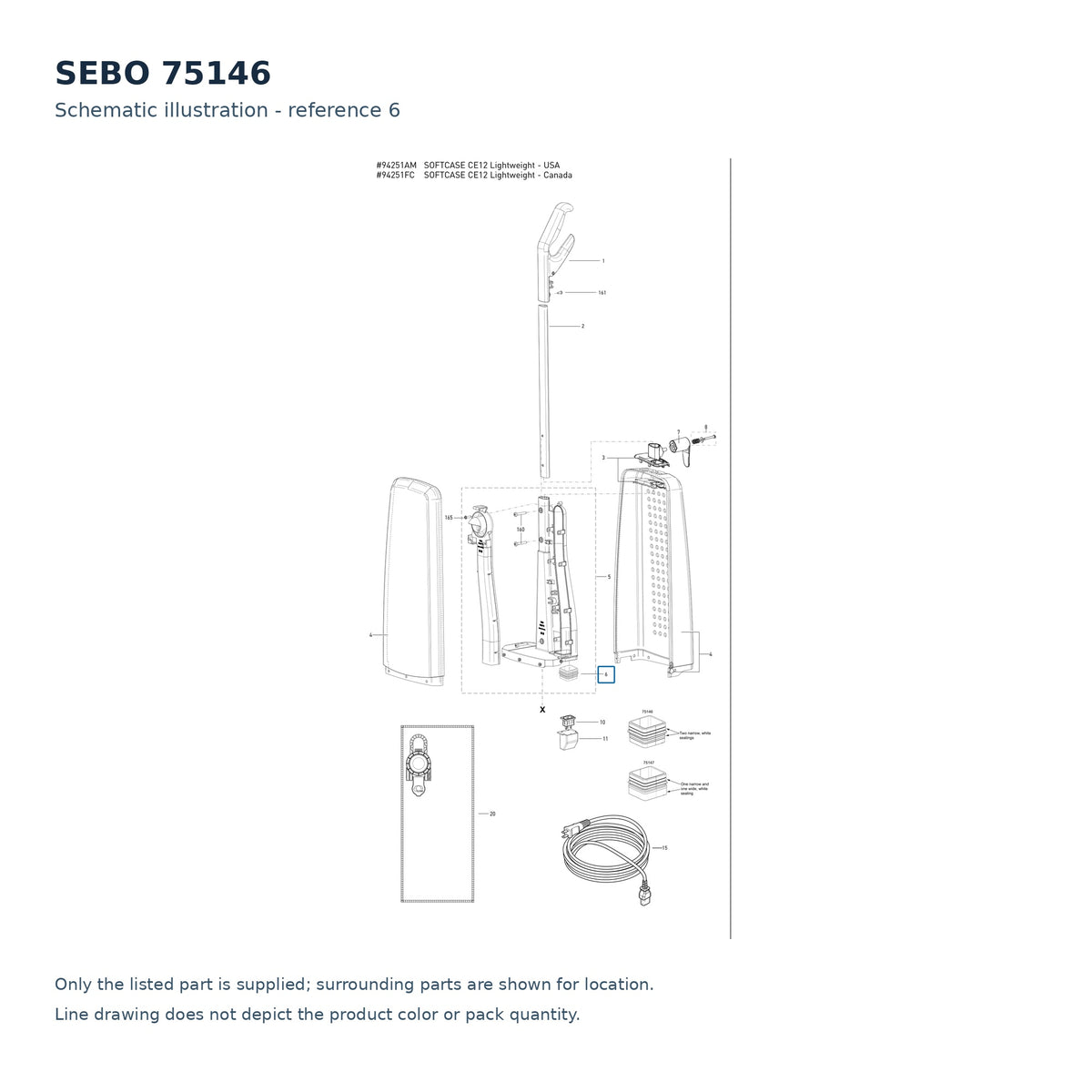

Where the mains cable enters the SOFTCASE CE12 body there is a sealing adapter gripping the lead and sealing the opening it passes through. The parts sheet gives it position 6, immediately after the complete air guide at position 5 and just before the cable hook at 7, and SEBO supplies it as part number 75146.

Small as it is, the adapter decides how long the cord lasts. It takes the tug when the lead is pulled from across a room and stops that force reaching the connections inside, and it keeps the housing sealed at the point where a hole has been made in it. Split that adapter, or let it go slack, and the lead begins sawing its way through that opening whenever the cord is pulled, so the internal joints take the load instead, and what follows is the intermittent supply that is so tedious to chase later.

The rest of the supply side is documented on the same sheet, so a cord job can be done properly in one go: the mains connector is position 10, the two-wire 9.25 m cable in 2 x 17 AWG is position 15, the protection cover is 11, and a strain relief is listed at 170. Renewing this adapter alongside a cord is cheap insurance against repeating the work.

• Part number: 75146, sealing adapter for the power cord
• Fits: SEBO SOFTCASE CE12 upright vacuum
• Diagram position: 6 on the SOFTCASE CE12 parts list
• Function: grips the mains lead and closes the housing where it passes through
• Sold: individually
• Related positions: mains connector at 10, protection cover at 11, mains cable at 15

It is a part that takes minutes and repays fitting properly: pull the cable through, seat the adapter fully, and check the lead cannot be drawn further into the body by hand.

Genuine SEBO part, searched as a SEBO cord grommet, CE12 cable gland or SOFTCASE CE12 power cord seal. Ships in 2-5 business days.
