SEBO Bearing Block, Right Hand, for SOFTCASE CE12

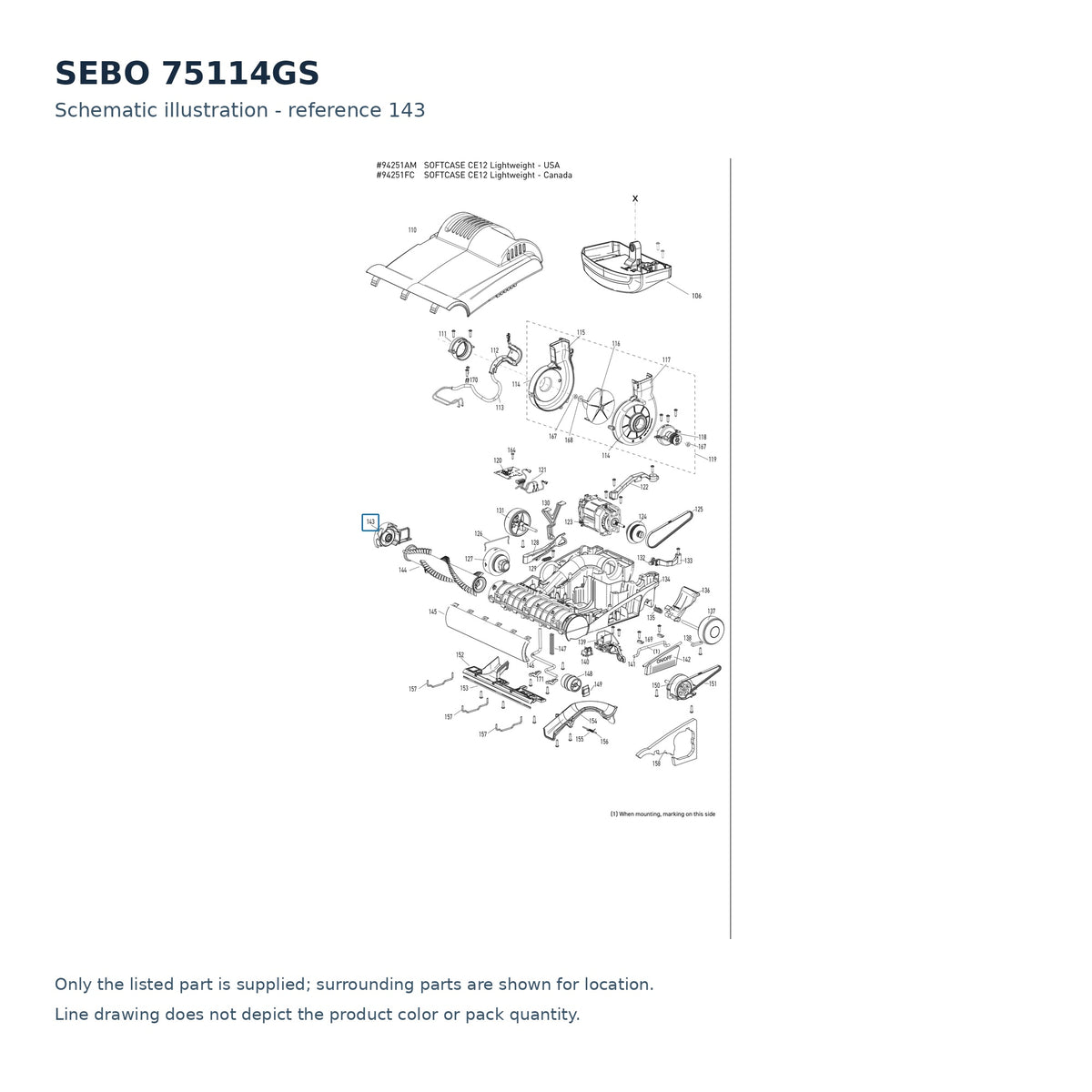

Handed parts catch people out, and this is one of them. 75114GS is the right-hand bearing block for the SOFTCASE CE12, shown at position 143 on SEBO's parts list, and it mirrors rather than matches the left-hand block 75113 at position 150. Order two of the same number and the roller will not seat.

What the block does is simple and constant: it carries the roller at the right of the nozzle and keeps it spinning true across the width of the nozzle. Every strand of hair wrapped around the roller end, every gritty carpet, and every hour of running works against the bearing surface. When it goes, the roller runs with a rumble, the brush strip wears unevenly across its length, and the belt starts tracking off centre because one end of the roller is no longer where the other end expects it to be.

This end of the machine is well documented on the CE12 sheet, which helps when several things are worn at once. The rocker switch is position 140, the pile adjustment axle 146, a toothed belt 318 HTD 3M 6 at 151, the 259 mm sealing strip at 153 and the bearing pin at 156. Working through that group in one strip-down saves opening the base twice.

• Part number: 75114GS
• Component: right-hand bearing block
• Fits: SEBO SOFTCASE CE12 upright vacuum
• Diagram position: 143 on the SOFTCASE CE12 parts list
• Side: right hand, mirrored to the left-hand block and not interchangeable
• Left-hand equivalent: 75113 at position 150
• Genuine SEBO spare, supplied singly

Blocks fail slowly, so compare the roller end play against the other side rather than judging it in isolation.

Common searches that arrive at this number are SEBO bearing block right hand, CE12 brush roller bearing and SOFTCASE CE12 roller end support. Ships in 2-5 business days.
