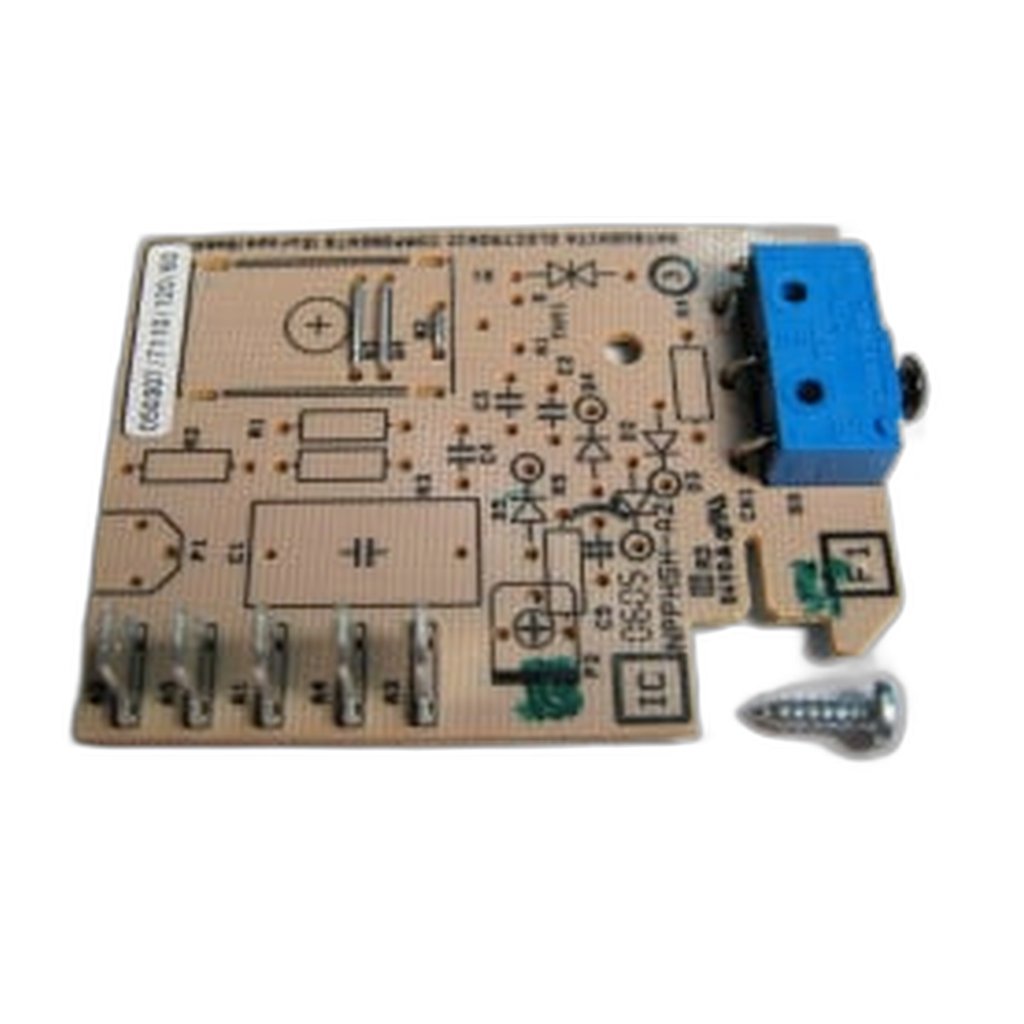

SEBO 120V Circuit Board for FELIX Premium Without Variable Suction Control

A control board is the one FELIX part that cannot be ordered on a model name. 7110ER is the 120V board for a SEBO FELIX Premium built as the FELIX 1 Ice Blue, machine number 9802AM, and it applies only to examples made with no variable suction control at all. If there is no way to vary suction on your upright, this is its board. Where a machine does have that adjustment, the board is a different item and this one will not stand in for it.

The board sits on the machine's power circuit, which makes it the third suspect rather than the first. A FELIX Premium that refuses to start deserves a continuity check on its supply cord and a check on the switch before the body is opened, because both fail more often and both take less time to change. What points here is what is left once those two come back clean: an upright still dead, or one that starts, runs, and drops out on its own with nobody touching the cord.

• Part number: 7110ER
• Machine: a SEBO FELIX Premium built as the FELIX 1 Ice Blue, machine number 9802AM
• Rating: 120V
• Build: for uprights made without a suction adjustment
• Check first: cord continuity, switch operation, and whether your machine has any suction control at all

Two related numbers save a second order. SEBO lists 7038ER as the switch with integrated board for FELIX machines whose on/off control carries no suction slider, and 7111ER is the board used where variable suction control is present. The supply cord for these uprights is 7127DG, and the internal cable behind it is 7071.

Original SEBO electronics from our authorized dealership. Unplug the machine and hand the swap to a qualified vacuum technician. Ships in 2-5 business days.
