Royal 18-Inch Bottom Plate ...
$39.99
Product details

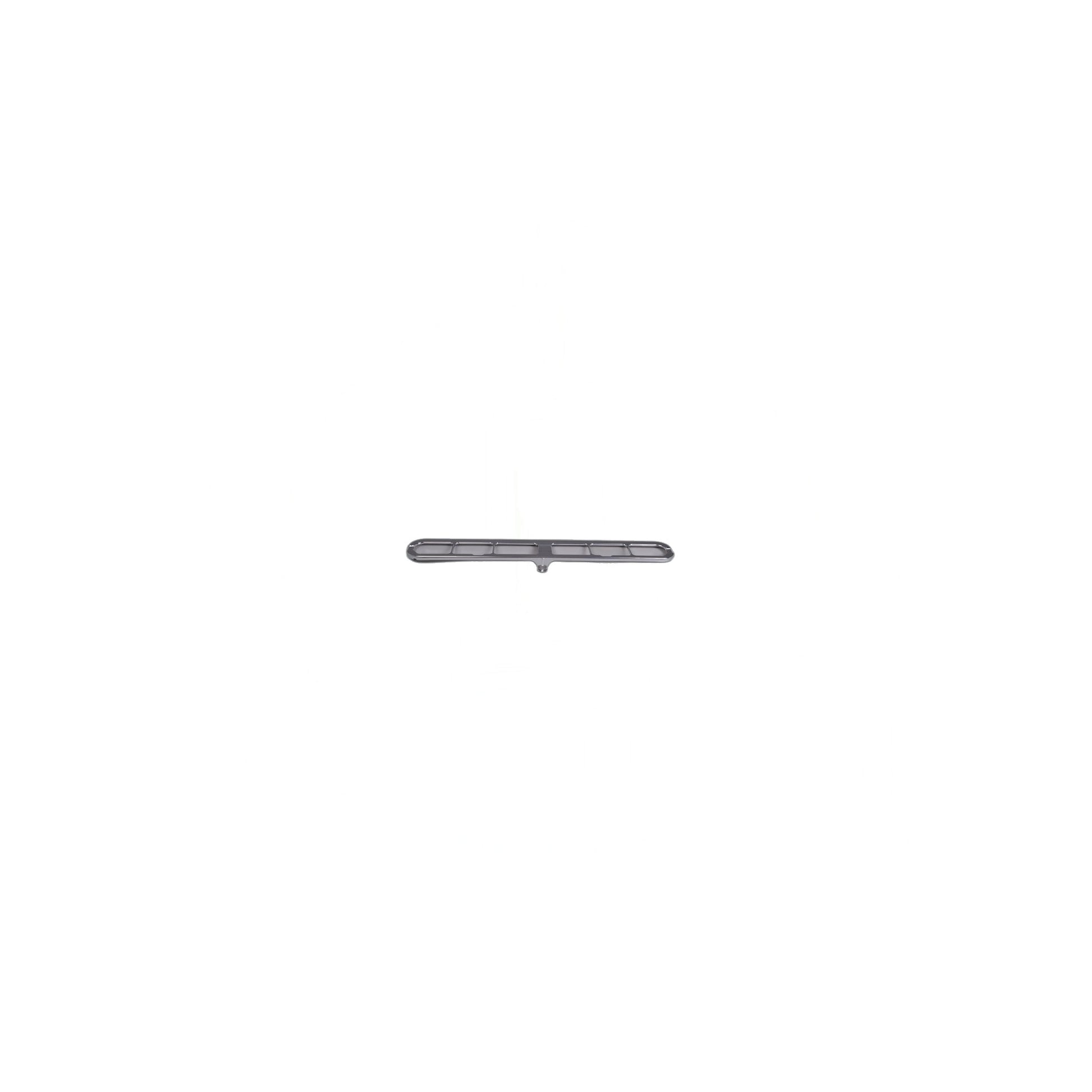

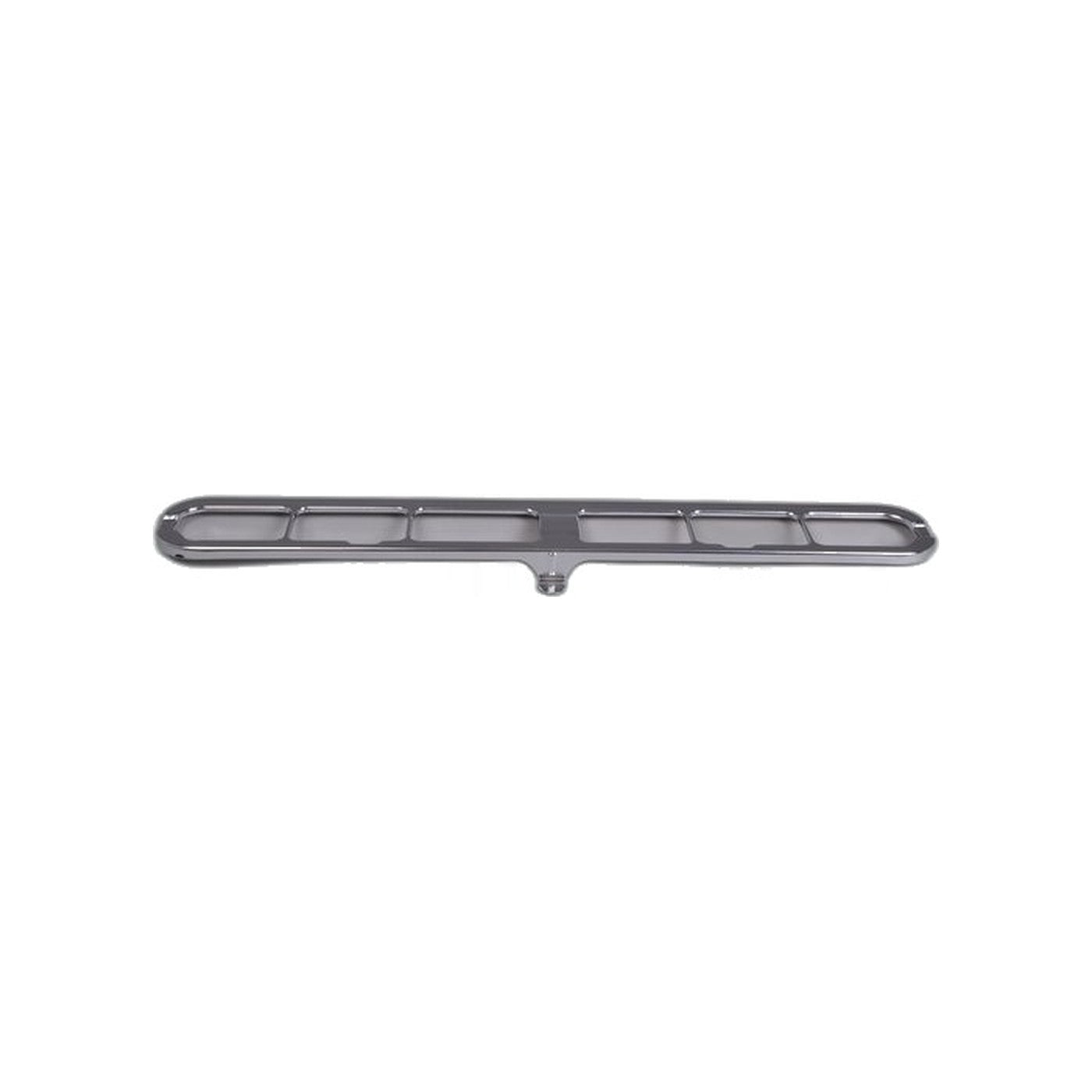

Part 1692270000 is the 18-inch bottom plate fitted to Royal's commercial metal upright line, confirmed for the 1058Z, 1059Z, and CR5158Z. This panel closes the underside of the machine and holds the seal the nozzle depends on for suction.
These metal-bodied uprights are built for daily janitorial use, and the plate underneath takes the impact of thresholds, door frames, and furniture legs long before any other part shows wear. A gouge or crack lets air leak past the nozzle, so pickup drops off well before the damage looks bad enough to explain it visually.
Crews usually notice the symptom before they trace the cause: pickup falls off along part of the nozzle width, or passes that used to come up clean start leaving a strip of debris behind. Neither clue points straight at the plate, so the damage often goes unaddressed until someone tips the machine over and sees the gouge along one edge.
- Part: 18-inch bottom plate, part 1692270000
- Fits: Royal 1058Z, 1059Z, and CR5158Z commercial metal uprights
- Function: seals the underside of the chassis and preserves nozzle suction
- Tip: check the plate for cracks any time the housing is already opened to service the belt or brush roll, while the underside is already in plain view
A fresh, flat plate restores full floor contact along the cleaning width and stops a worn edge from scuffing the flooring the machine is supposed to be cleaning. Confirm your Royal model reads 1058Z, 1059Z, or CR5158Z before ordering rather than matching by appearance, since this listing is confirmed for those three models only. Keep the old plate until the new one is fitted, since comparing the two edge to edge is the quickest way to confirm the order was right.
