ProTeam Hall Assembly Contr...
$12.99
Product details

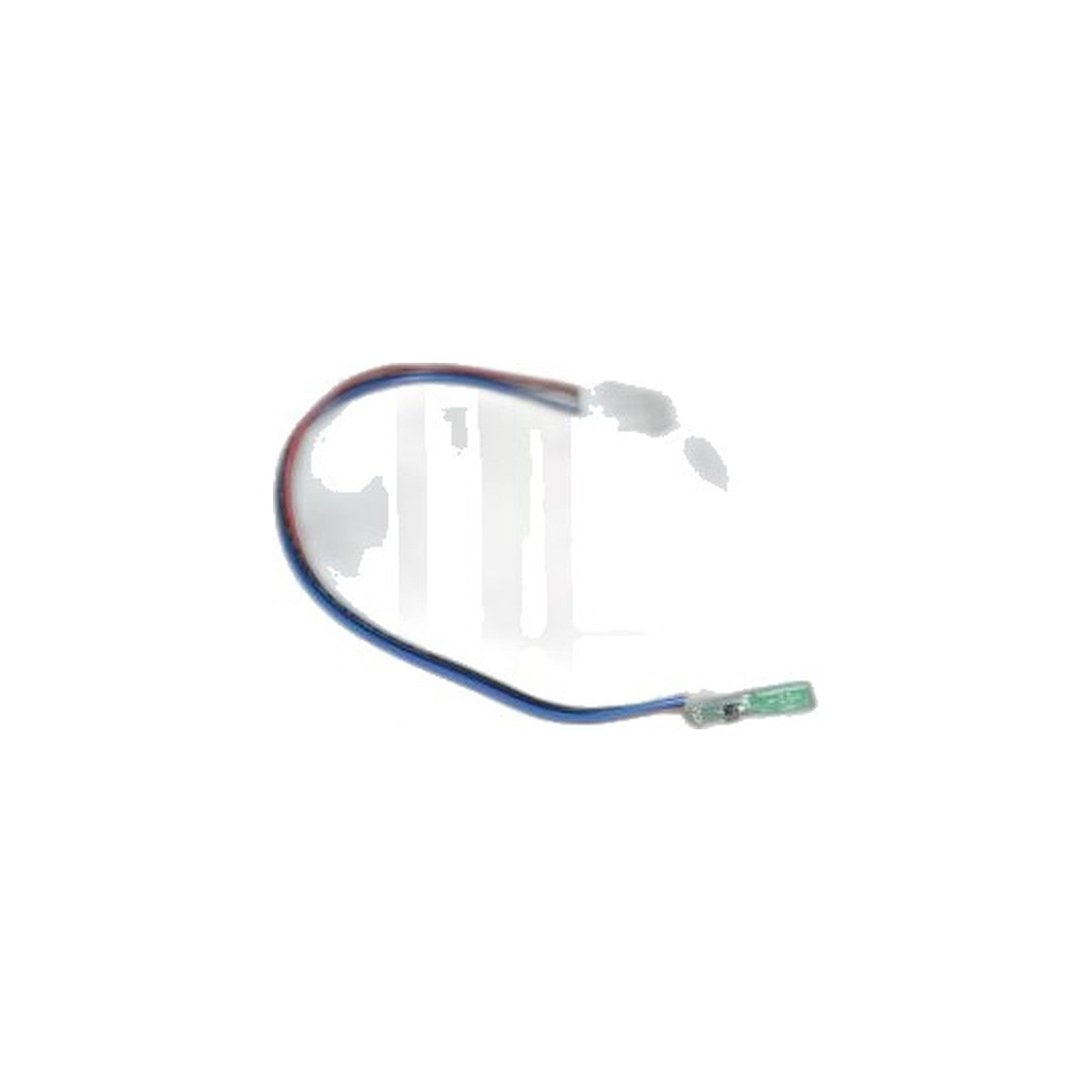

ProTeam catalogs part 835683 as the hall assembly board for its ProGen 12 and ProGen 15 machines built for commercial use, and the FreeFlex corded-cordless upright also relies on this same board. Match part number 835683 against your machine's parts diagram before ordering, since a board swap only fixes anything when it is the right board for the fault.
Across all three machines a failing hall assembly board looks about the same at the switch. Buttons and dials stop doing anything, the vacuum cycles on and off with no rhyme or reason, or the whole unit refuses to wake up even when plugged into a socket you have already tested with something else. Symptoms like these point at the electronics rather than a mechanical part, and once the cord, the switch, and the outlet have each been cleared, this board is what remains on the list.
Pull the plug before opening the housing, pick the new board up by its outer edges rather than the components soldered to its face, and move the job off carpet, since static collects fastest there and this is sensitive electronics.
Snap a picture of how the wiring runs before unplugging the old board, so that every connector goes back exactly where it came from once the new board is in place. Transferring one connection at a time is slower but removes the guesswork entirely.
- Part: 835683, hall assembly control board
- Fits: ProTeam ProGen 12, ProGen 15, FreeFlex Corded-Cordless Upright
- Symptom: unresponsive controls, random cutouts, dead on a known-good outlet
- Install: confirm the part number against your machine's diagram, handle by the edges, avoid static
