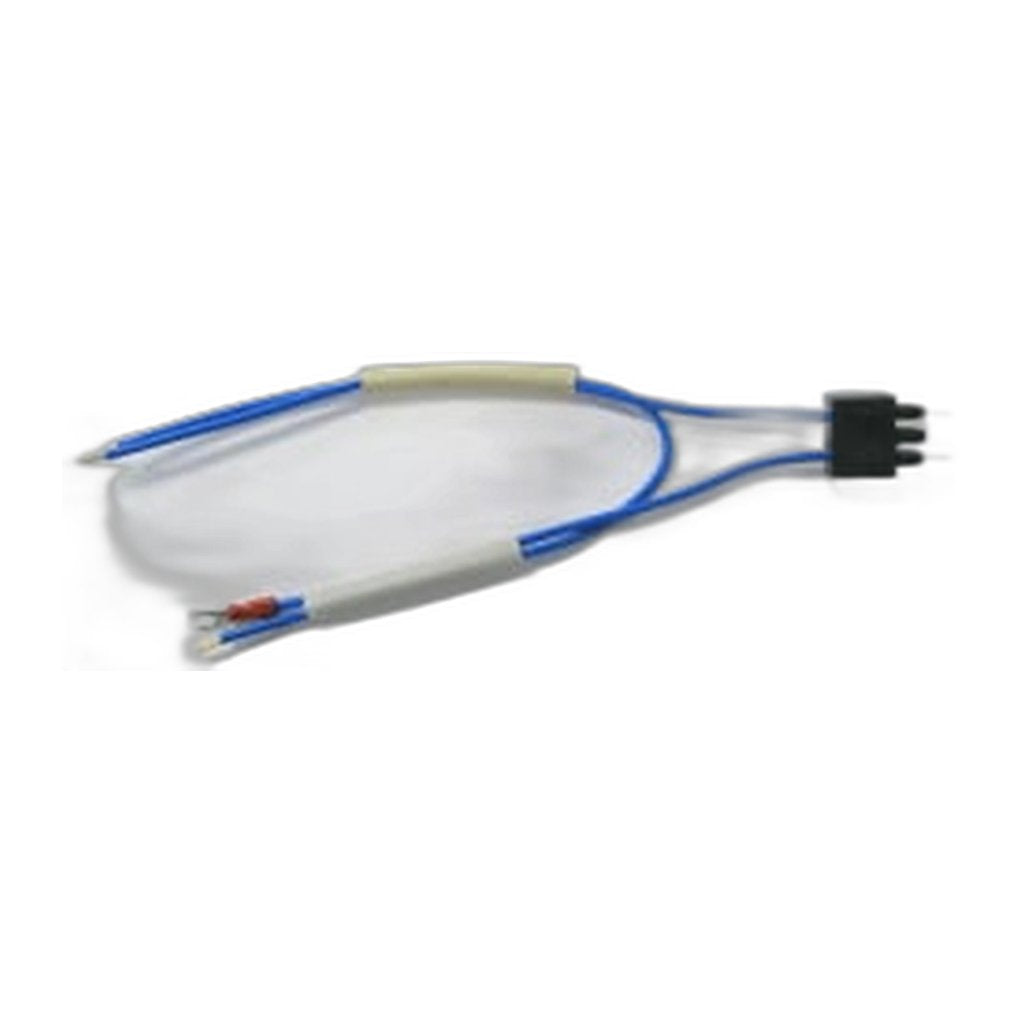

SEBO Male Contact Holder for the ET-C Power Head

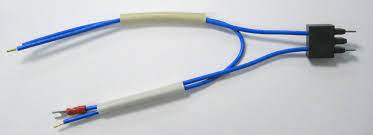

Power to the brush roll passes through a pair of contacts at the head connection, and 6146UL is the insulating body that holds the male side of that pair. It sets the spacing, keeps the metal isolated from the surrounding plastic, and stops the pins wandering as the head is coupled and uncoupled.

Trace the current and the holder's importance becomes obvious. Supply arrives at the ET-C through the wand, crosses these contacts, and runs on to the head's circuit board — SEBO lists that board as 2584ER for 120V machines — before it reaches the brush motor. Everything downstream depends on the contacts meeting squarely, which is the one job this moulding has.

When the holder splits, the pins tilt or sink. The symptom is a brush roll that cuts in and out, refuses to run, or leaves scorch marks on the mating contacts. Intermittent operation that changes when you wiggle the connection is the classic tell. A sound holder puts the pins back where the design intends. Inspect the pins for pitting while the assembly is apart, and unplug the machine before starting.

• Part number: 6146UL, male contact holder
• Fits: SEBO ET-C power heads
• Job: holds the male contacts in position and keeps them insulated where the head couples up
• Symptom: a common cause of intermittent brush roll operation
• Elsewhere in the same circuit: 2584ER, the 120V board for this head
• Nearby ET-C numbers: 2452 switch lever, 2453 micro switch support, 2482SW complete power head cover in black
• Supply: genuine SEBO part from an authorized dealer, ships in 2–5 business days

Shoppers hunting a SEBO contact holder, an ET-C power head electrical repair part, or a genuine SEBO male contact holder have found the right page. Electrical work inside a power head is straightforward but unforgiving of guesswork; hand it to a service technician if the wiring is unfamiliar.
