Kirby Sentria Handle Pivot ...
$42.99
Product details

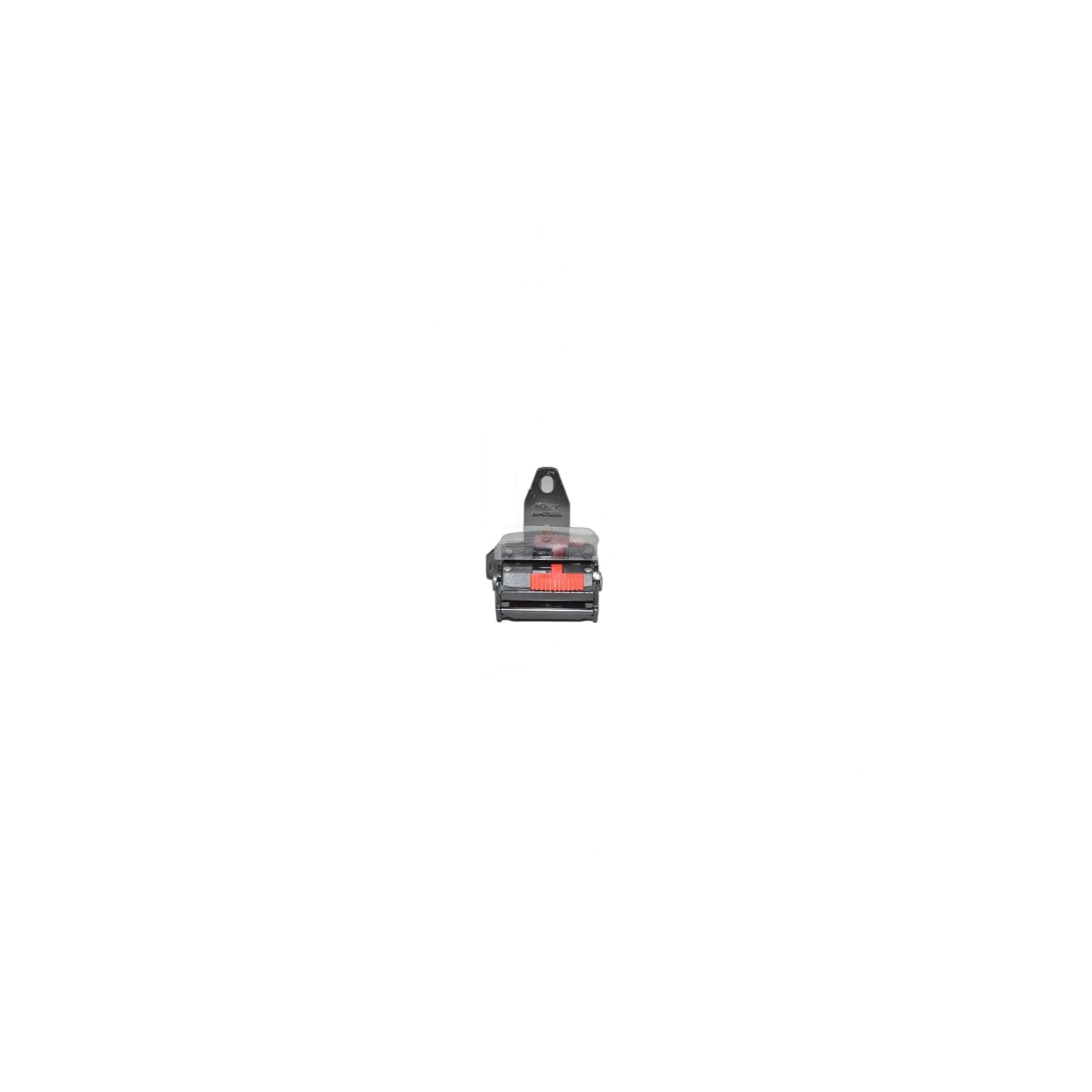

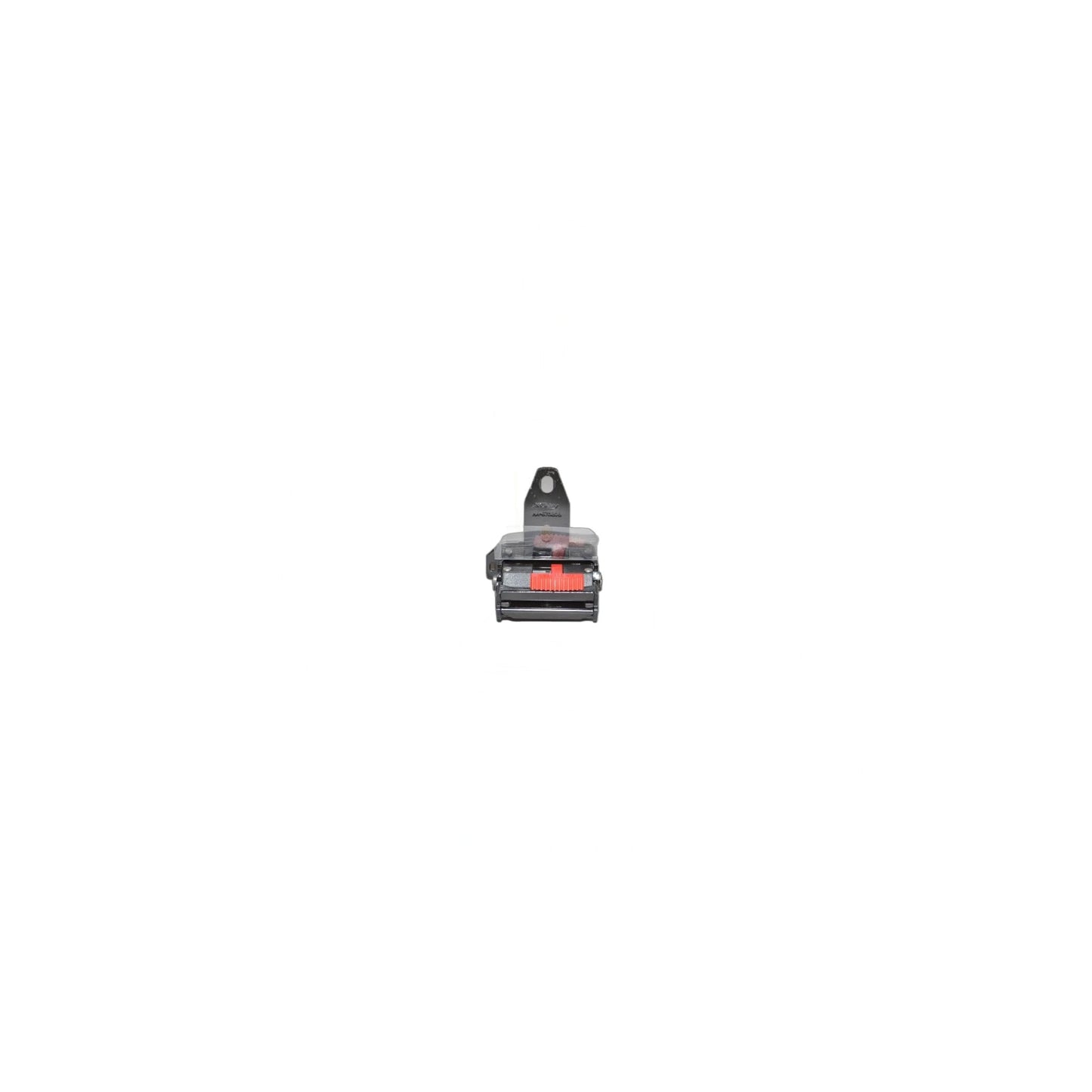

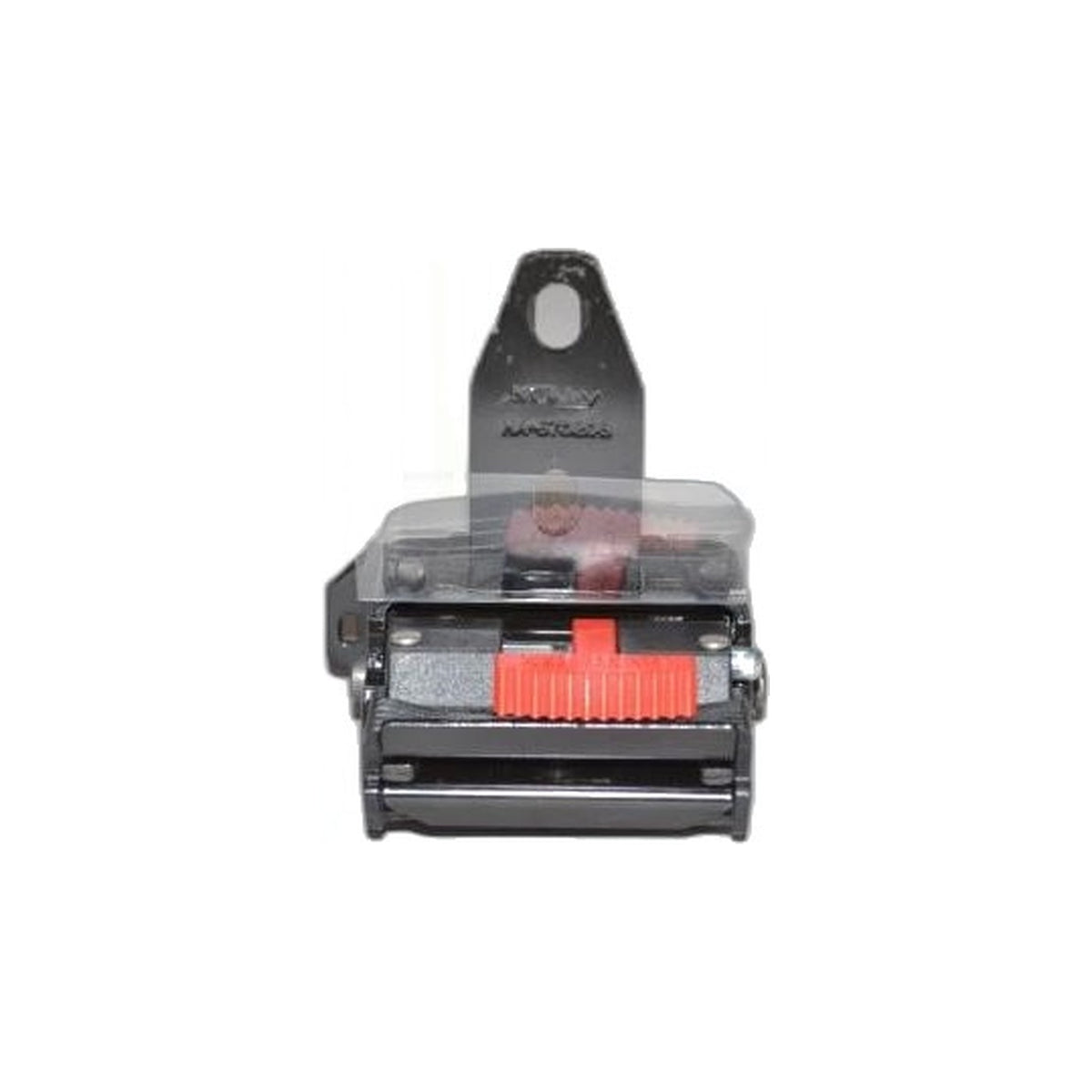

A Kirby handle reclines for cleaning and locks back upright between passes, and that motion runs through a spring-loaded pivot at the base of the handle fork, sealed by a rubber boot. 671914G is that pivot spring assembly with the boot included, built for the Sentria.
The same pivot assembly carries across the Avalir, Diamond Edition, G4, G5, Generation 3, GSIX and Ultimate G, all of which share this handle-fork design.
When the spring weakens or the boot splits, the handle stops locking cleanly. It feels loose or floppy through the recline motion, and it may not catch and hold upright at all, which on a machine this heavy means the handle can drop on its own the moment you let go.
The boot usually shows the first visible sign of trouble, since it is rubber exposed to the same flexing the spring goes through internally. A split or torn boot lets in dust and grit that then accelerates wear on the spring mechanism it is meant to protect, so a torn boot is worth acting on even before the recline action feels obviously loose. Replacing the whole assembly, spring and boot together, resets that action rather than patching a boot that is already torn around a spring that is on its way out anyway. Because this assembly is shared across seven different Kirby generations, confirm which handle-fork style your machine actually has before ordering. Kirby kept the pivot design consistent across this run, but pairing the wrong-generation boot with an otherwise correct spring is a common source of a fit that looks right but does not seal properly.
- Part: 671914G handle pivot spring assembly with boot
- Fits: Kirby Sentria, Avalir, Diamond Edition, G4, G5, Generation 3, GSIX, Ultimate G
- Symptom: loose or floppy handle recline, will not lock upright
- Includes: pivot spring and rubber boot
