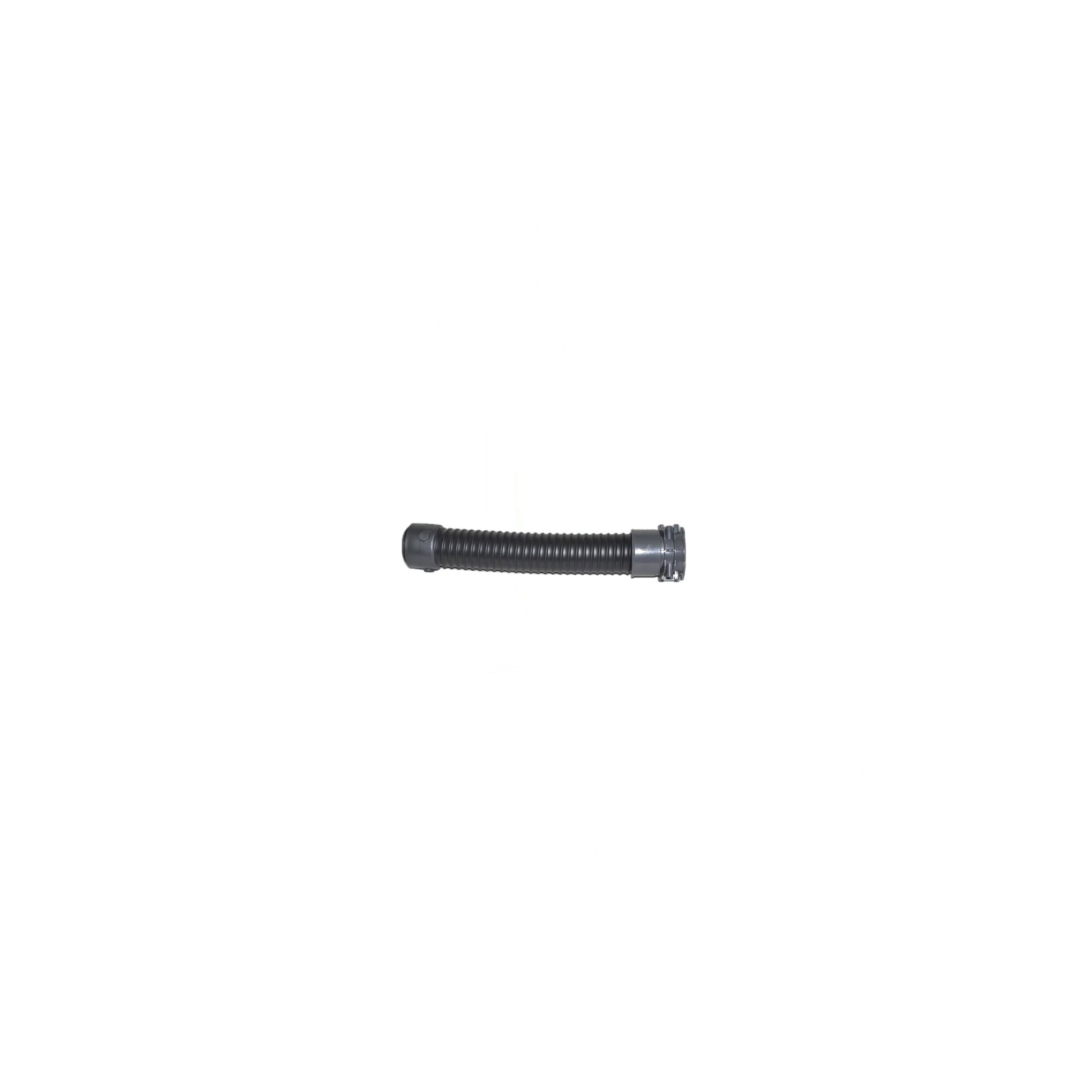

Kenmore Air Inlet Connectio...
$12.99
Product details
The air inlet connection on a Kenmore 31230 upright is where suction enters the machine's airway, and part 561019137 is the replacement assembly for it. The parts listing pins down one hard number for this piece: it is listed at 12 inches, which is worth checking against the part you are replacing before anything else.
Every joint along a vacuum's airway has the same job: pass air through without letting more sneak in along the way. A crack or a worn mating surface at the inlet lets air in ahead of the bag, and that leak drains the suction reaching the nozzle even though nothing else about the machine has changed. The vacuum keeps running, sounds normal, and simply picks up worse than it used to.
Because a leak here is quieter than an obvious fault like a torn bag, it is easy to overlook. If a 31230 has gradually lost pulling power and the bag, filter and hose have all checked out, this inlet is worth ruling out next. Find the assembly on your machine's parts diagram, then inspect the old part for hairline splits and check every mating surface for gaps that are hard to catch by eye but easy to feel with a fingertip.
- Part: 561019137
- Fits: Kenmore 31230 upright
- Function: air inlet assembly, start of the sealed airway
- Spec: listed at 12 inches
- Symptom: gradual suction loss with no visible blockage
- Before ordering: compare the 12 inch figure and the shape of the fitting against the assembly you are taking off, since that measurement is the only dimension the listing gives you to check against
This assembly is listed for the 31230 alone, so confirm the exact model number on your unit before you place the order.
