Bissell Revolution HydroSte...
$6.99
Product details

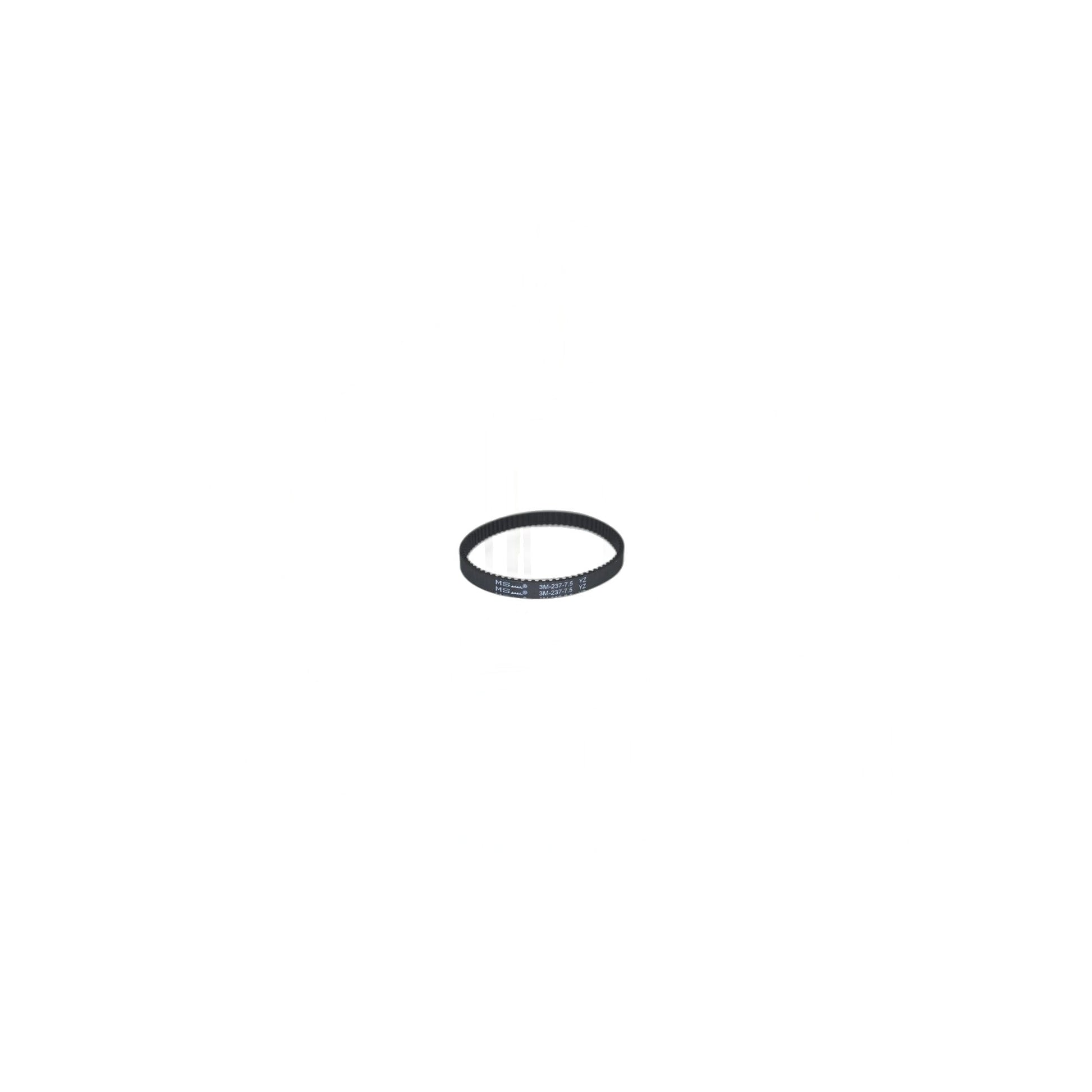

Geared belt for Bissell's Revolution HydroSteam carpet cleaner, cataloged as part 1634216 and covering the HydroSteam 3428, 3432 and 3513 along with the Pet Exclusive models 34249 and 3438. It is catalogued as the brush-to-pump belt, so it sits in the drive path linking those two components rather than standing on its own as a brush belt.
Toothed belts of this kind stay perfectly reliable, right up to the point they are not. Wear tends to happen at the teeth themselves, gradually rounding off or occasionally shearing outright when the roller jams against hair or a stray thread caught in carpet fiber, and once enough teeth are compromised the belt begins skipping under load rather than driving cleanly. From there it usually goes from intermittent drive to none at all within a short window of continued use.
Because this belt runs between the brush and the pump, a failure can announce itself at either end, so check both before ordering. Watch whether the roller still turns under the machine, then pull the trigger and see whether a proper spray still arrives. A carpet cleaner missing one of those two is doing far less than it appears to, since agitation and solution have to land together for carpet to actually come clean rather than just get wet.
Before fitting a new belt, run a finger across the teeth of the drive pulley itself. Wear concentrated there is exactly what strips the next belt just as quickly as it stripped the last one, and checking takes only a few seconds.
- Part: 1634216 (geared)
- Fits: Bissell Revolution HydroSteam 3428/3432/3513, Pet Exclusive 34249/3438
- Function: geared drive linking the brush roll and the pump
- Replace when: the brush turns intermittently, stops, or spray output falls away
