Panasonic Fan Spacer - all ...
$6.99
Product details

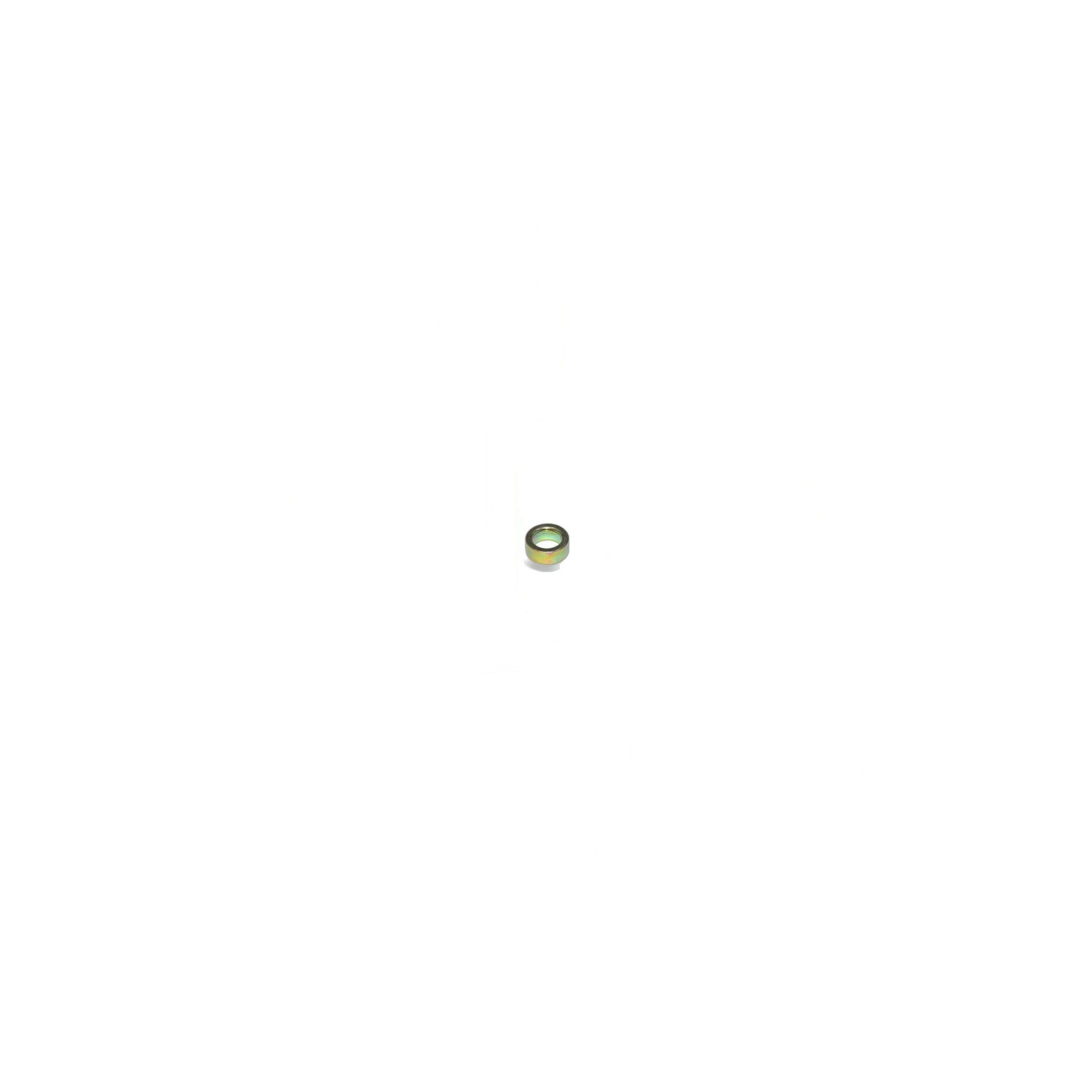

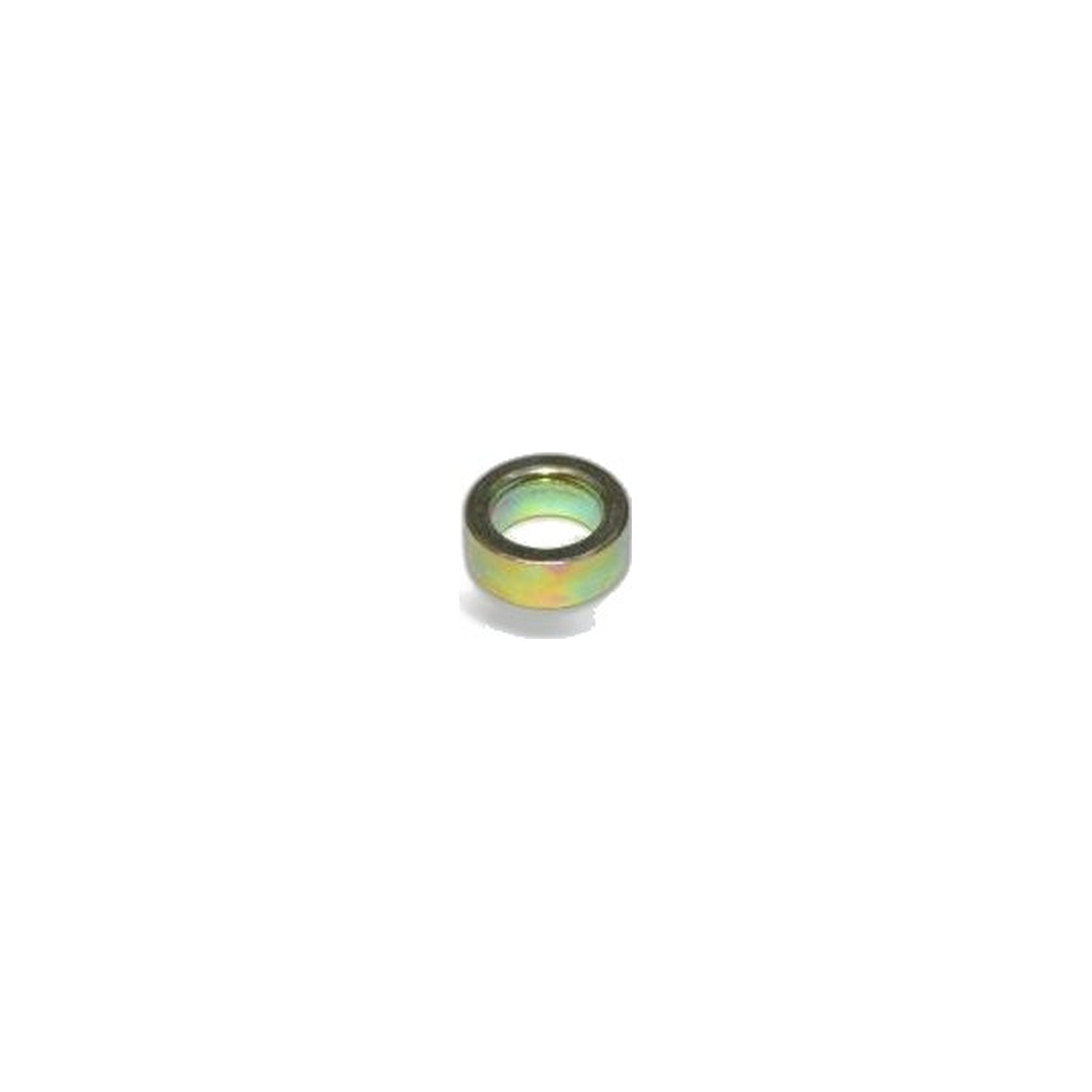

Inside the fan assembly of a Panasonic upright vacuum, a small spacer holds the fan wheel at a precise distance from the surrounding housing, and this is that piece, part AMC61F-D90.
That distance matters more than its size suggests. Set correctly, the fan spins freely and clears the shroud around it on every rotation. Once the spacer wears thin, cracks, or shifts out of position, the fan can drift just enough to brush against the housing as it turns, and even a small change like that disturbs airflow through the entire machine. The usual signs are a new vibration or a faint rattle coming from the motor housing, sometimes alongside a drop in suction that does not track with a full bag or a dirty filter, since the actual restriction is happening at the fan itself rather than anywhere downstream.
Because the spacer sits deep inside the fan assembly, checking or replacing it usually happens as part of a broader fan service rather than as an isolated five-minute fix, so it is worth having on hand any time that assembly is already open.
- Part: AMC61F-D90 fan spacer
- Function: positions the fan wheel correctly within the fan housing
- Sign of wear: new vibration, rattle, or a suction drop with no other cause
- Often replaced with: the fan itself, if that assembly is already being opened
Panasonic used this fan and spacer combination across a range of upright models rather than one specific machine, so no individual model numbers are listed here. Match the spacer against the part it is replacing, or check it directly against your machine's fan assembly, before ordering.
