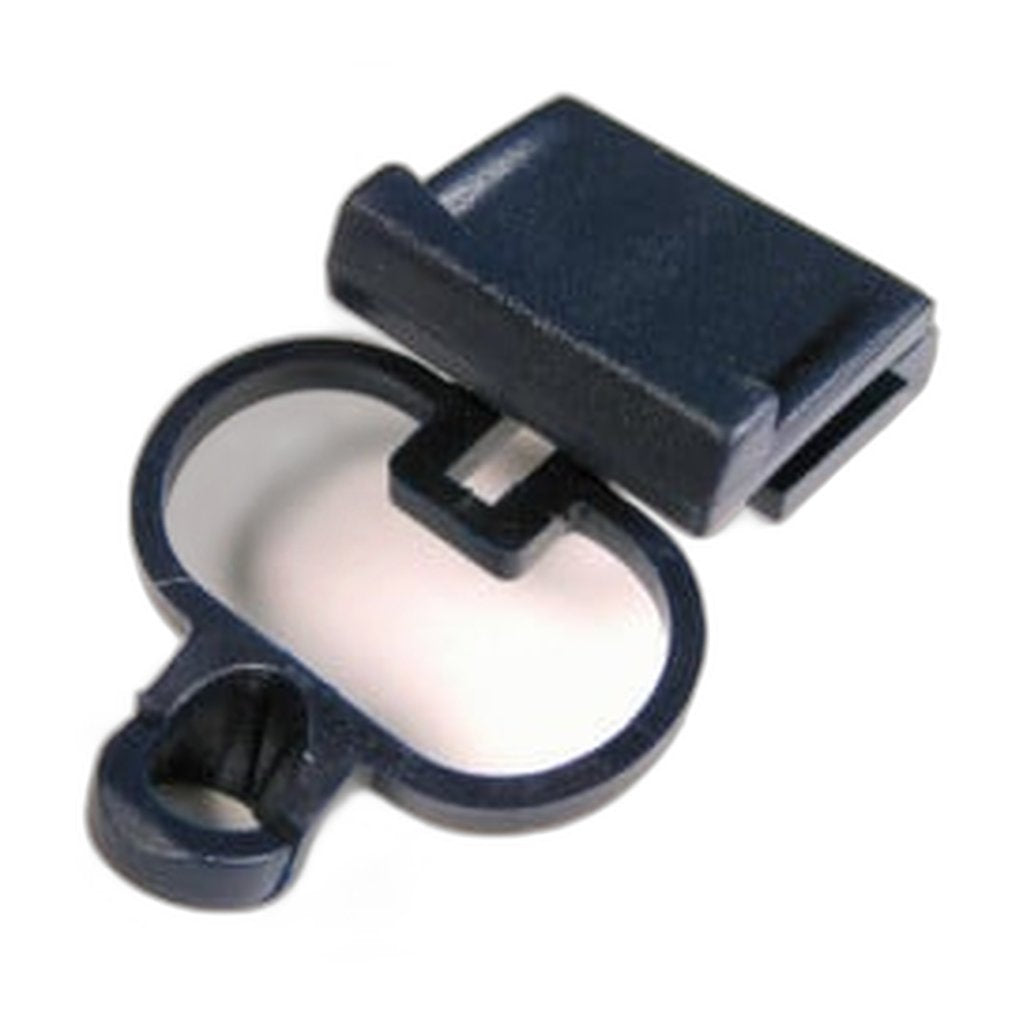

SEBO Exhaust Filter Catch f...
$6.99
Product details
Dark blue bodywork on a SEBO upright wants dark blue fittings, and 5712DB is the catch that holds the exhaust panel down. It is listed for two machines, the AUTOMATIC X4 and AUTOMATIC X5, and SEBO gives it item number 101 within the power head cover group drawn at item 100. Two lines further on, at item 103, sits the panel it grips: exhaust filter cover 5711DB in the same finish.
Think of it as a spring and a hook formed from one piece of plastic. The spring pushes, the hook bites, and the exhaust panel stays where it was put. Both features are stressed each time that bay is opened for filter service, so the hook is what eventually rounds off or snaps away. Once it has, the panel no longer draws down flat. It stands slightly proud along an edge, resonates against the body once the motor is working hard, and can free itself entirely mid-job, leaving the filter untensioned in its recess. The noise nearly always arrives first; the broken tab only turns up when the panel comes off. Catch and panel are separate lines on the drawing, so one failing does not force the other to be bought.
- Machines: SEBO AUTOMATIC X4, AUTOMATIC X5
- Finish: dark blue, matched to dark blue X4 and X5 shells
- Made from: one moulded plastic piece, sprung arm and hook together
- Where it sits: item 101, inside the power head cover group at item 100
- Duty: keeps the exhaust filter panel latched
- Sold as: a single catch
- Order number: 5712DB
- Panel it retains: 5711DB, item 103
- Filter in that bay: 5143
- Dark blue companions: 5713DB brush roller release, 5707DB latch release cover, 5702DB bag housing bumper base, 5755DB bag housing, 5749SE front cover, 5031DB1 right-hand bearing block, 5768DB cable hook kit
SEBO moulds an identical catch in white and in gray black under 5712WE and 5712GS, each with a different list of machines behind it, so buy on the colour of the plastic rather than the badge on the body. Wording people use to find this piece includes the six characters alone, a dark blue filter latch for an X5, and a genuine SEBO rear panel catch. Ships in 2–5 business days.
