SEBO Brush Cover for AUTOMA...
$8.00
Product details

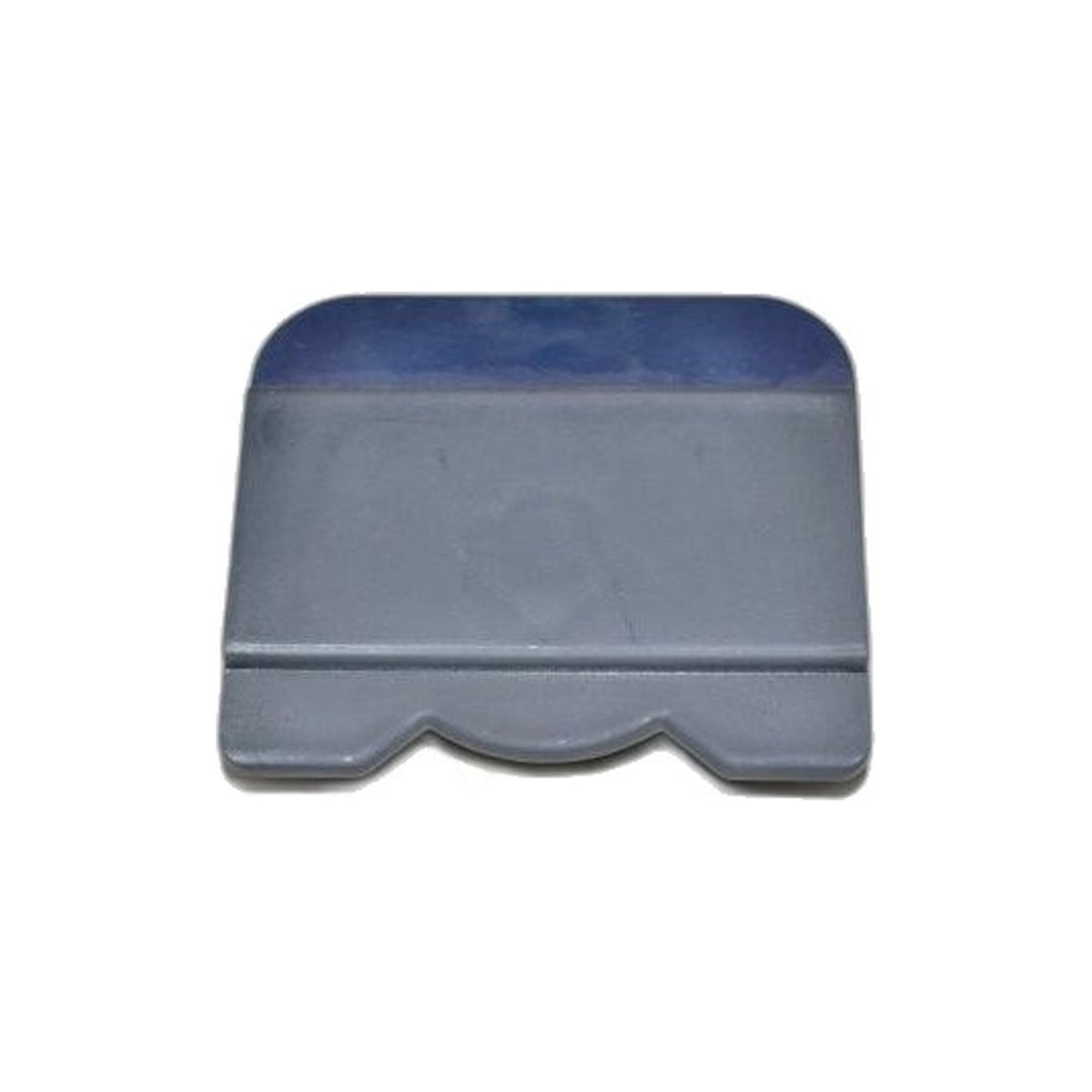

The dark blue cover at the brush roller end of the power head is doing more than finishing the styling: it closes off that end of the housing, keeps the roller assembly captive and stops debris working its way into the bearing area from the side. Part 5249DB1 is the SEBO replacement for the AUTOMATIC X2 and AUTOMATIC X5.
SEBO shows the cover at position 161 of the AUTOMATIC X4 / X5 exploded diagram, catalogued there in dark blue and gray black finishes; this listing supplies the dark blue version. Directly above it on the same sheet, at position 160, sits the seal bearing 5244HG — worth ordering together, because a cover that has been broken off in a collision usually means the end of the roller has taken a knock as well, and a fresh seal keeps grit out of a bearing that has just been disturbed.
Covers break in a moment rather than wearing out: a hard contact with a stair nosing, a doorway, or a metal threshold strip. On the AUTOMATIC X2, the catch that holds the cover closed is a separate part, 5239GS, so check whether it is the cover, the catch, or both that need renewing. Owners with a white machine want the white version instead, listed as 5249WE.
- Part number 5249DB1 — brush cover
- Colour and finish: dark blue
- Fits the SEBO AUTOMATIC X2 and AUTOMATIC X5
- Diagram position 161, AUTOMATIC X4 / X5 breakdown (dark blue / gray black entry)
- Job: encloses the brush roller end of the power head
- Related numbers: seal bearing 5244HG (position 160), white cover 5249WE, X2 cover release 5239GS
Colour and number both matter at the counter, because SEBO catalogues this cover in more than one finish and a dark blue machine wearing a white end cap is the one repair every visitor spots. Searches for an AUTOMATIC X5 brush cover, an X2 roller end cap or a dark blue SEBO power head cover all resolve to this number.
Genuine SEBO brush cover from an authorized dealer, shipping in 2–5 business days.
