SEBO Bearing Block and Hing...
$6.99
Product details

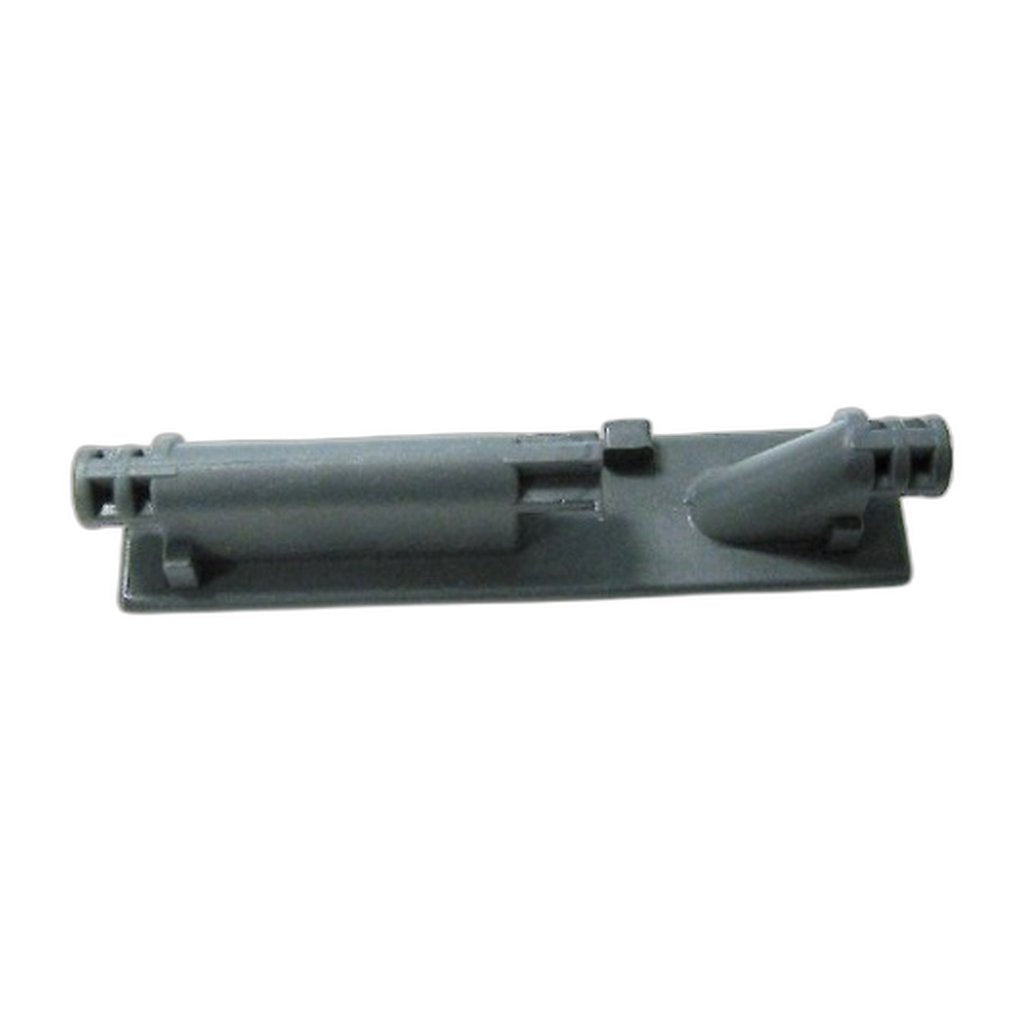

Hinged panels need something to pivot on, and on C-series canisters that duty falls to 6168DG. The moulding combines a bearing block with the hinge itself, giving the panel a defined axis and absorbing the small side loads that come from opening and closing it. It is listed for the C1.1, the C2.1 and the C3.1 alike, in the dark gray finish SEBO uses across the range's fittings.
Repeated use wears the bore oval or snaps a lug clean off, at which point the panel sits crooked, drags on its opposite edge, or will not latch square. A panel that has started to bind is usually blamed on the catch when the pivot is the real culprit. A new block restores a clean axis without touching the rest of the body, and it is an inexpensive moulding, so renewing it during any strip-down is sensible. Anyone searching for a SEBO bearing block, a SEBO C series hinge or a genuine SEBO hinge block in dark gray is on the right listing.
Several small pivot parts on these canisters look similar once a machine is in pieces, so check the number before ordering. The bearing cover that belongs to the cover release is 6039, the cover release itself with its seal is 6036DG, and the pin with screw and washer is 6027ER — all listed for the same C1.1, C2.1 and C3.1 machines, and all easy to mistake for one another on a stripped bench. Dark gray trim numbers nearby include the rear parking holder 6008DG, the side parking holder 6009DG and the castor 6095DG.
- Part number: 6168DG, bearing block and hinge
- Colour: dark gray
- Fits: SEBO C1.1, C2.1 and C3.1
- Job: carries the pivot for a hinged panel and takes its side loads
- Sold: individually
- Easily confused with: 6039 bearing cover, 6036DG cover release with seal, 6027ER pin with screw and washer
- Supply: genuine SEBO part, ships in 2–5 business days
