Oreck 2-Speed Switch Assemb...
$6.99
Product details

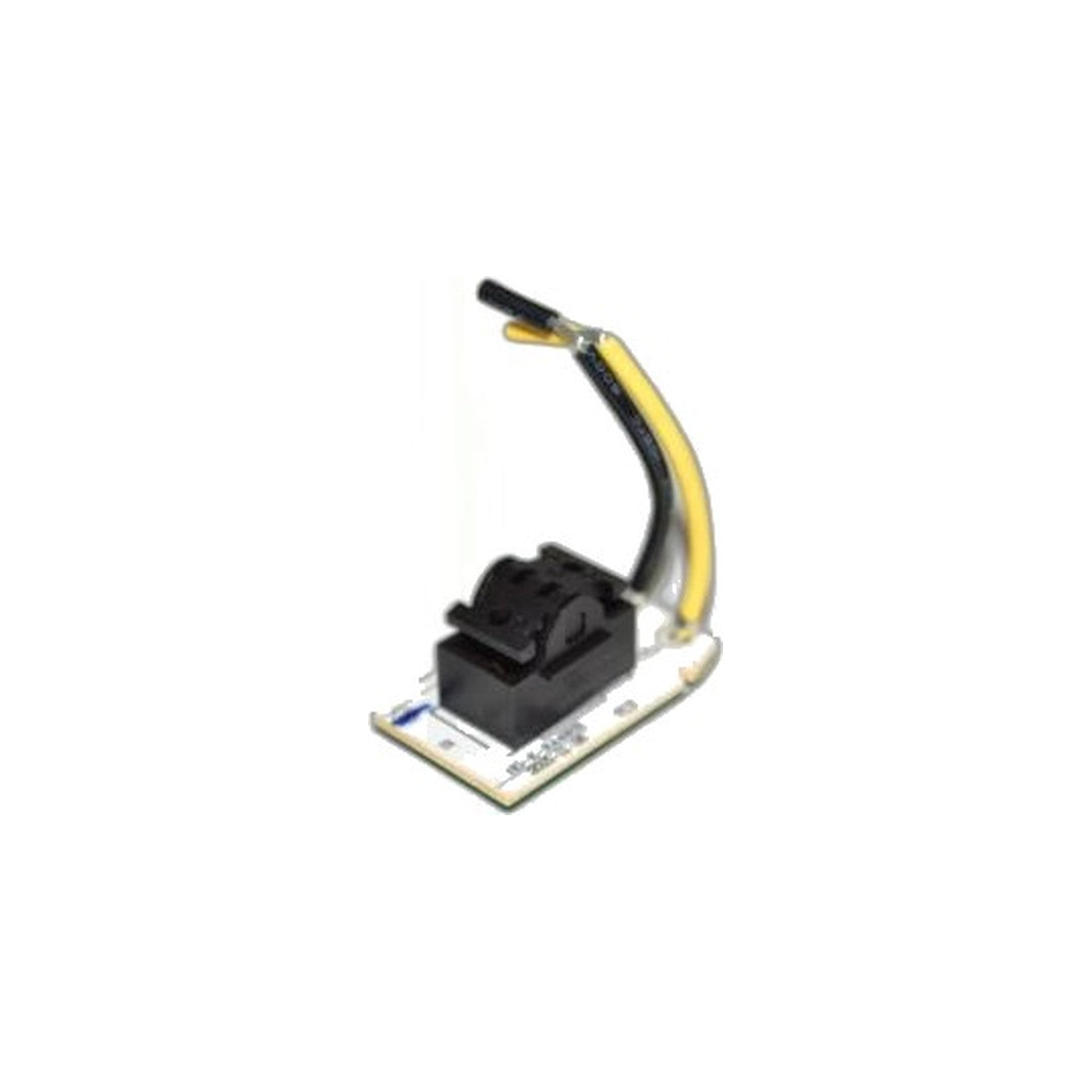

This is the two-speed switch assembly for the Oreck UK30300, part 430000985, and it comes with the circuit board built in rather than needing the board ordered separately.
A failing switch and board combination shows up as a vacuum that will not power on at all, one that starts only on a single speed, or a unit that cuts out when the switch is bumped or jostled during use. Because the board is integrated with this switch, either fault on this circuit calls for replacing the whole assembly rather than one piece of it.
Since the switch and the circuit board are combined on this part, a symptom that looks electrical, such as a speed that will not engage or a machine that only runs intermittently, is worth testing at the switch itself before assuming the motor or cord is at fault, since those symptoms often trace back to this assembly instead.
Disconnect the vacuum from power before opening the housing to access the switch. Oreck uses closely related model codes that differ only by a trailing suffix, and switch assemblies are not shared freely between them, so verify this part against your machine's part diagram before ordering rather than matching on the model name alone.
- Part: 430000985, 2-speed switch assembly with circuit board
- Fits: Oreck UK30300
- Symptom: unit will not power on, starts on only one speed, or cuts out when bumped
- Diagnosis: a speed that will not engage or intermittent running often traces back to this assembly before the motor or cord
- Before ordering: verify against your machine's part diagram
