Lamb 119996-00 Vacuum Motor...
$79.99
Product details

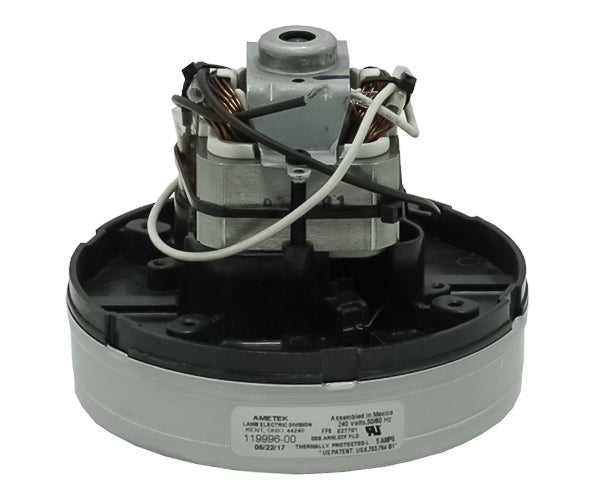

Motor 119996-00 is a Lamb thru-flow vacuum motor built on Ametek's Advantek platform, rated for 240-volt central vacuum systems. Ametek's own motor data lists it as a single-stage design, 5.7 inches across the base, with brush kit 8505940-51 for when the carbon brushes wear down.
A central vacuum motor gives warning before it fails outright. Sparking visible at the top of the motor, a burning smell, the unit clicking and shutting down rather than running, or suction that has grown noticeably weaker are all reasons to plan a replacement rather than wait for the motor to quit mid-job.
- Part: 119996-00
- Stage: single-stage, thru-flow
- Voltage: 240
- Frame diameter: 5.7 in.
- Platform: Ametek Advantek
- Brush kit: 8505940-51
Compare the motor's mounting bracket and wire terminals against the unit coming out before ordering, since central vacuum power units built by different manufacturers use motors of similar size that are not always interchangeable. Matching the part number stamped on the old motor to 119996-00 is the surest confirmation, ahead of matching by voltage or frame size alone. Ships to you in 2-5 business days.
Verified against: Ametek's motor data for 119996-00
